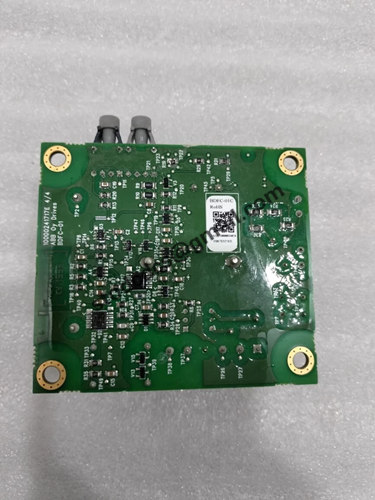

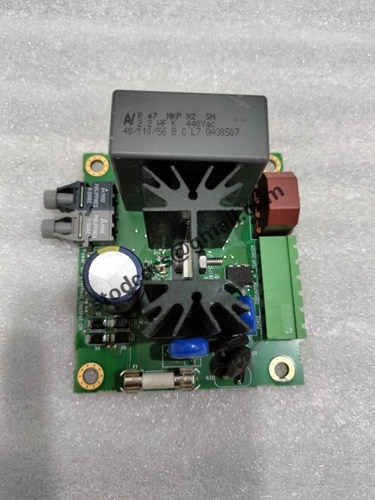

BDFC-01C Fan Control Board

Brand:ABB
Model:BDFC-01C
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

BDFC-01C Fan Control Board

Product manual:

The BDFC-01C fan control board is an industrial grade fan control module commonly used in power electronic systems
Intelligent control and protection of cooling fans in frequency converters, servo drives, or industrial control cabinets.
This control board is manufactured by multiple industrial automation companies and belongs to the general/customized electronic auxiliary module category.

1、 Product Overview
The BDFC-01C control board is mainly used to automatically detect the temperature or load situation of the control equipment, and then start and stop the cooling fan,

2、 Main functions
Temperature control start stop: automatically control the fan operation based on feedback from thermistor or thermistor device (NTC/PTC);

Multi channel output: can control the start and stop status of multiple sets of fans, supporting parallel fan loads;

Soft start and delay protection: reduces the impact of fan starting current, supports delayed start/stop;

Fault detection: such as fan stall, stalling, abnormal voltage alarm;

Communication support (some models): Supports TTL, 485, or analog signal reporting;

Multiple control modes: optional timed control, temperature triggered control, manual forced start.

3、 Technical specifications (typical)
Input power supply: 12VDC/24VDC (customizable)

Control output: relay contacts, PWM or MOS tube drive

Number of control channels: 2-4 channels (depending on the model)

Supported fan types: DC brushless fan (commonly 12V, 24V)

Temperature sensor: NTC thermistor interface (usually 10K Ω)

Working temperature: -20 ° C~+70 ° C

PCB size: customizable (commonly 80mm x 50mm)
