BENTLY 3500/22M 138607-01 Transient Data Interface
Brand: BENTLY
Model:3500/22M 138607-01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
BENTLY 3500/22M 138607-01 Transient Data Interface
Product manual:
BENTLY 3500/22M 138607-01 Transient Data Interface Module
Product Introduction
BENTLY 3500/22M (138607-01) is the Transient Data Interface (TDI) module in the Bently Nevada 3500 series monitoring system.
This module is used to connect the monitoring rack with the upper computer system, realizing the transmission of mechanical state data and transient waveform data,
It is the core unit of communication and data management in the entire system.
Main Features
Dual function integration
Simultaneously equipped with Rack Interface Module (RIM) and communication processing capabilities.
Can handle steady-state (static) data and transient (waveform) data.
High performance data collection
Capable of real-time collection and transmission of data from various monitoring modules (such as 3500/40M, 3500/42M, etc.).
Support high-speed transient waveform capture for fault diagnosis and event tracing.
Multiple communication methods
Ethernet interface (10Base-T/100Base TX), optional fiber optic communication (100Base FX).
Support communication with System 1 mechanical monitoring software to achieve centralized monitoring.
High compatibility
Compatible with all M-series monitoring modules.
Usually installed at Slot 1 position in the 3500 rack, adjacent to the power module.
Industrial grade reliability
Anti interference and anti vibration design ensures stable operation in high noise and strong vibration environments.
Power consumption is about 10.5 W, supporting continuous long-term operation.
Application field
Mechanical equipment vibration and condition monitoring system
Monitoring of rotating mechanical equipment such as turbines, compressors, motors, pumps, etc
Status analysis and preventive maintenance of process industry equipment
Support event waveform recording and dynamic trend analysis

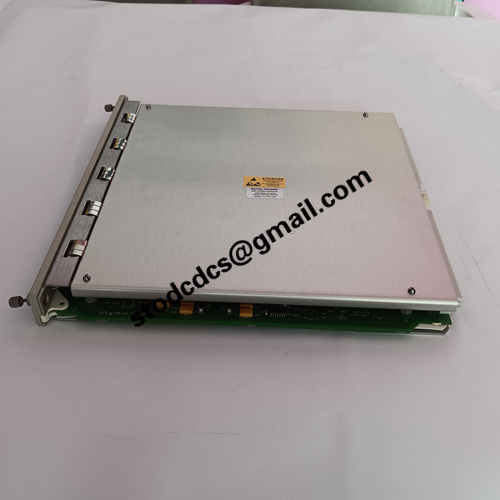

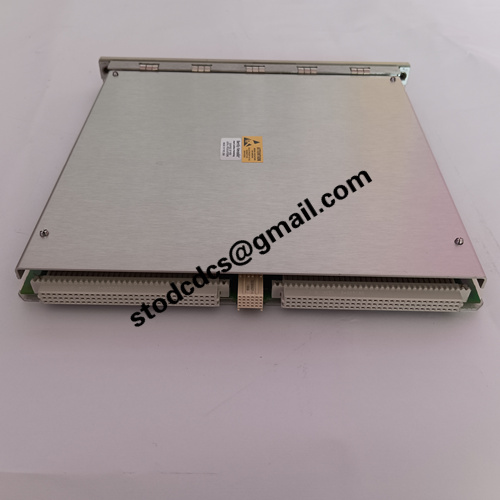

BENTLY 3500/22M 138607-01 Product details picture:
3500/22M 138607-01
BENTLY 3500/22M 138607-01 product video
