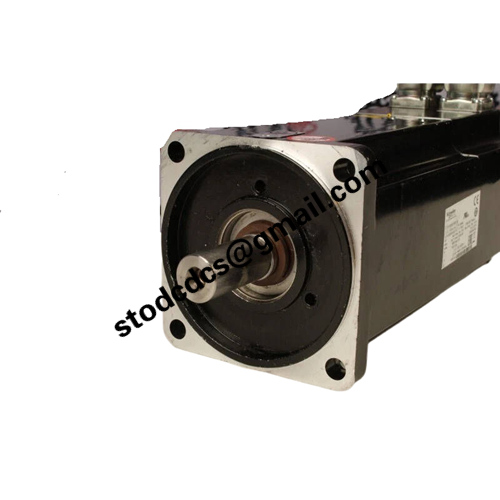

BMH1003P16F2A servo motor

Model:BMH1003P16F2A
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

BMH1003P16F2A servo motor

Product manual:

Introduction to Schneider BMH1003P16F2A servo motor

BMH1003P16F2A belongs to the BMH series high-performance servo motor commonly used in Schneider Electric's Lexium 32/62 system. This series is known for its high power density, fast response speed, and smooth operation, making it suitable for automated mechanical equipment that requires high-precision positioning and high-speed dynamic performance.

BMH1003P16F2A is a medium power range model with a base size of 100, equipped with a high-resolution feedback device, and can be used in conjunction with Schneider LXM32, LXM62 and other servo drives.

Main Features

High dynamic response
Adopting a low inertia design, suitable for high-speed start stop and quick position switching.

High precision feedback system
Equipped with multi turn or high-resolution encoders, it can achieve high repeatability precision control.

Compact structure and excellent heat dissipation
Suitable for applications with limited space but requiring high performance.

Stable torque output
Electromagnetic structure optimization, low noise, low vibration, and high efficiency.

Perfectly matched with Lexium series servo drives
Plug in connection, automatic parameter recognition (supported by some drives).

Typical technical parameters (BMH1003 series universal range)

The specific value of BMH1003P16F2A depends on the subdivision code. If you need, I can help you match more accurate rated torque/rated power.

Machine base size: 100mm

Rotor inertia: low inertia level

Rated power range: typically around 1.3-2.0 kW

Rated torque: approximately 4-6 N · m (typical BMH1003 gear)
