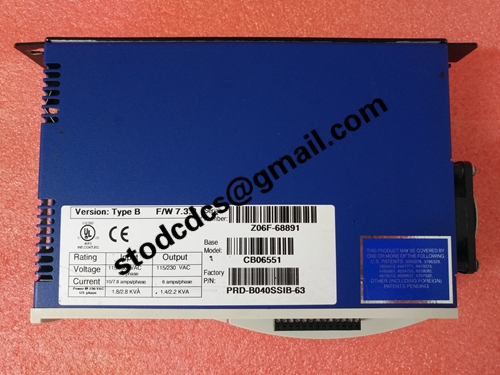

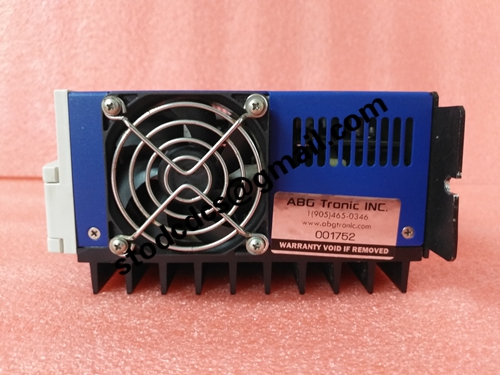

CB06551 PRD-B040SSIB-63 servo drive

Model:CB06551 PRD-B040SSIB-63
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

CB06551 PRD-B040SSIB-63 servo drive

Product manual:

Product Overview

PRD B040SSIB 63 is a high-performance servo drive used for precise control of servo motors in industrial automation systems, and is an important component of motion control systems. This driver is suitable for demanding precision motion control applications such as robots, robotic arms, and multi axis synchronous control systems.

Application field

Servo motion control of automated production equipment

CNC machine tools and precision machining equipment

Robot systems and robotic arm drives

Manufacturing equipment such as packaging machinery and printing machines

Semiconductor manufacturing and precision assembly platform

Multi axis synchronous motion control system

Industrial equipment upgrade or servo replacement plan

Main Features

High performance control: Supports position, speed, and torque control modes to adapt to various dynamic task requirements.

Flexible power supply: The input voltage is about 230 VAC, which can adapt to single-phase or three-phase power supply environments.

High output capability: Continuous output of about 40 A, peak output of about 80 A, capable of driving medium to high power servo motors.

Multiple feedback interfaces: compatible with encoders, parsers, and absolute value feedback to improve positioning accuracy.

Multiple communication protocols: Supports EtherCAT, CANopen, Modbus RTU, analog ± 10   V, pulse/direction signals, etc.

Complete protection mechanism: equipped with overcurrent, overvoltage, undervoltage, overtemperature, short circuit, and overload protection.

Compact design: easy to install control cabinet DIN rails or panels.

Diagnostic function: Provides status feedback and fault diagnosis for easy debugging and maintenance.

working principle

The control system issues position, speed, or torque commands → the driver calculates the control quantity → outputs PWM voltage/current to the servo motor → the motor feedback signal returns to the driver → the driver adjusts the output based on feedback to achieve closed-loop precision control.
