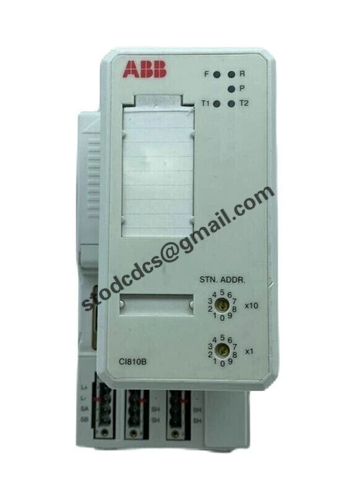

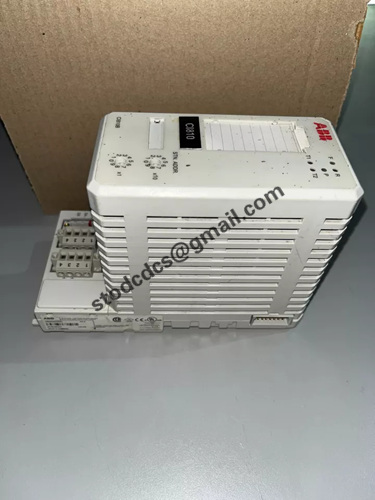

CI810B 3BSE020520R1 Controller Module

Brand:ABB
Model:CI810B 3BSE020520R1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

CI810B 3BSE020520R1 Controller Module

Product manual:

The ABB CI810B 3BSE020520R1 controller module is a communication interface module used in ABB control systems for industrial automation and process control.

1、 Basic Product Information
Project Content
Product Name: Communication Interface Module
Model CI810B
Order number 3BSE020520R1
Brand ABB
System Platform AC 800M Control System, S800 I/O Series
Communication protocol PROFIBUS DP Slave

2、 Function and Features
PROFIBUS DP interface

The module is connected to the PROFIBUS network as a slave station;

Allow AC 800M controller to communicate with remote S800 I/O module via PROFIBUS.

Hot swappable support

Can be replaced during system operation without power outage;

Improve system maintainability and operational continuity.

Module redundancy support

Can be redundantly configured with another CI810B;

Automatically switch in case of main module failure to ensure uninterrupted communication.

Integrated diagnostic function

Equipped with status LED indication;

Support system internal diagnosis and alarm management.

3、 Technical specifications and parameters
Project parameters
Communication type PROFIBUS DP (RS-485)
From station address range 0-125
Maximum baud rate of 12 Mbps
Supply voltage 24 V DC (powered through S800 I/O connector)
Power consumption is about 1.5 W
Interface type 9-pin SUB-D (DP interface)
Working temperature range -25 ° C to+70 ° C
Installation method: DIN rail, plug into S800 I/O base
Compatible with base modules TU810, TU812, TU830, TU833, etc
