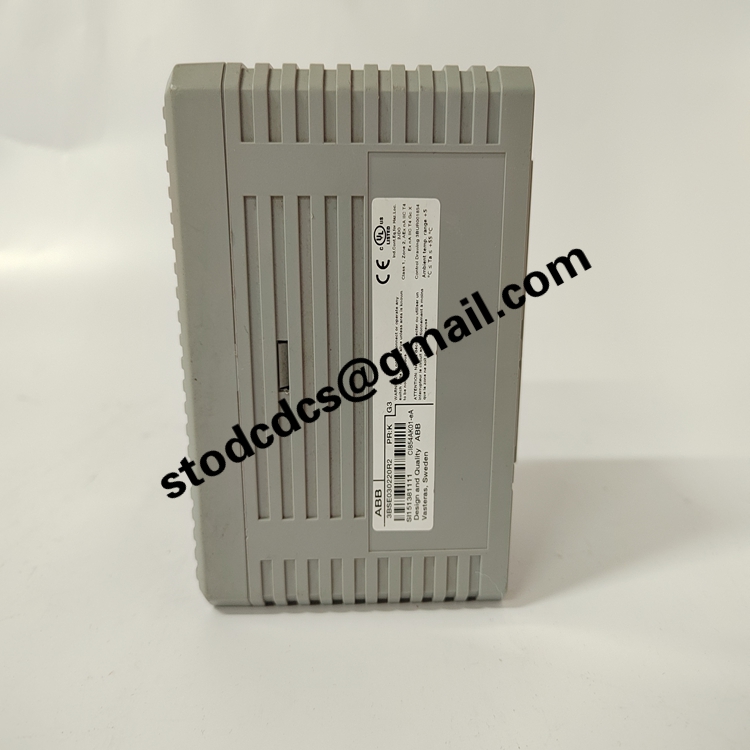

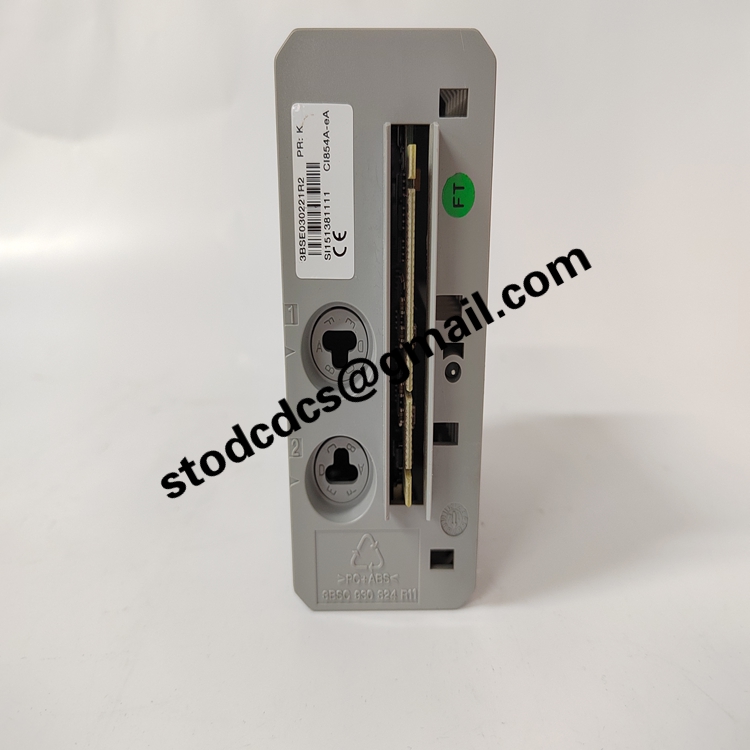

CI854A eA 3BSE030221R2 interface module

Model: CI854A-eA 3BSE030221R2
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

CI854A eA 3BSE030221R2 interface module

Product manual:

CI854A eA 3BSE030221R2 interface module
CI854A-eA 3BSE030221R2 is an enhanced PROFIBUS DP master interface module designed by ABB specifically for AC 800M controllers and System 800xA systems, used for high-speed and stable data exchange between field devices and control systems.
Core Features
The core function is PROFIBUS DP V0/V1 main station communication, supporting primary and backup redundant configuration
Equipped with 2 independent RS-485 communication ports, supporting bus topology and redundant links
Communication speed of 9.6Kbps~12Mbps with automatic detection, meeting high-speed data transmission requirements
Industrial grade 24V DC power supply, suitable for standard industrial control power environment
Wide temperature operating range -40 ℃~+70 ℃, resistant to high vibration and complex industrial conditions
Built in complete fault self check and LED status indication, quickly locate communication faults
Directly compatible with S800 I/O system, compatible with multiple brands of PROFIBUS devices
Support the collaborative construction of high availability control systems with CPU redundancy and CEXbus redundancy
Modular card insertion design, installed on DIN rails, easy to maintain and replace
Complies with international industrial standards such as CE and UL, and meets global project certification requirements
The station address can be flexibly configured to adapt to different scale on-site network architectures
Compact in size (approximately 185 × 59 × 127.5mm), weighing 0.59kg, saving cabinet space
Typical Applications
ABB AC 800M controller expands PROFIBUS fieldbus connection
Remote I/O and equipment communication networking for chemical and petrochemical process control systems
Data exchange and monitoring of automation equipment in power substations and power plants
Old DCS/PLC system PROFIBUS communication upgrade and spare parts replacement
This module is redundant, reliable, high-speed, and highly compatible. It is the core component for expanding PROFIBUS communication in AC 800M systems and is suitable for various harsh industrial sites.
