DELTA TAU ACC-24E2A Analog Servo Interface

Product manual:

ACC-24E2A is a high-performance servo interface module designed by Delta Tau for its UMAC control system, suitable for multi axis motion control applications.
It outputs control commands to the servo drive through simulation (± 10V) and supports high-resolution encoder feedback input.

2、 Function and Performance
Control Axis Count: Comes standard with 2 axes, optional extension to 4 axes (via submodule)

Control method:

Simulated speed control (± 10V)

Simulated torque control (± 10V)

Supports PWM or pulse direction control mode (optional)

Encoder input:

Each axis supports 3-channel differential encoder input (ABZ)

Supports single ended TTL or differential signals (configurable)

Can be used for incremental encoders and partial grating encoders

I/O interface:

Each axis has 8 universal inputs (digital quantity)

Each axis has 2 universal outputs

Signal processing:

High speed sampling and processing capability

Independent servo loop control, supporting feedforward and PID regulation

3、 Technical parameters
Installation method: 3U rack mounted card, installed in the UMAC main frame

Power requirement: ± 15V DC (from the motherboard power supply)

Working temperature: 0 ° C to 60 ° C

Cooling method: Air cooling (dependent on the ventilation system of the main control box)

EMC compatibility: compliant with industrial anti-interference specifications

4、 Application scenarios
This module is widely used in applications that require precise synchronization and multi axis control, including but not limited to:

Numerical Control Machine Tool (CNC)

Multi axis robotic arm

High speed packaging equipment

Semiconductor Manufacturing Equipment

Automatic Assembly System

High speed textile and printing control system

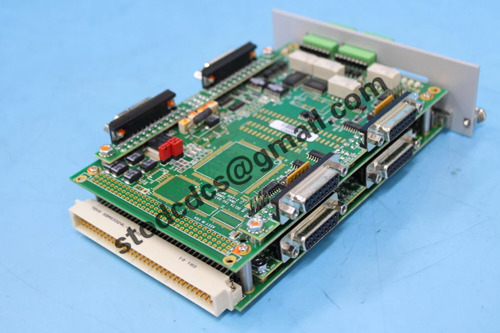

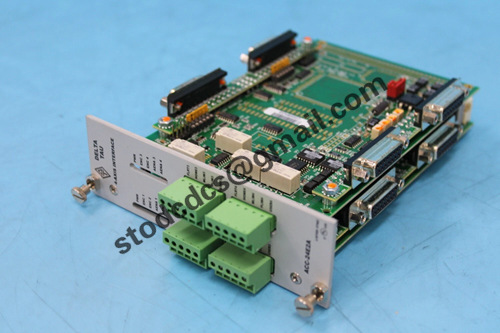

Product details picture:
