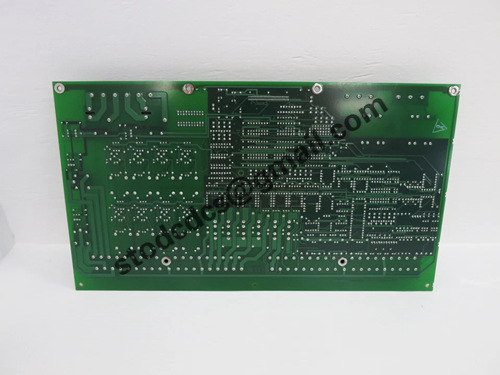

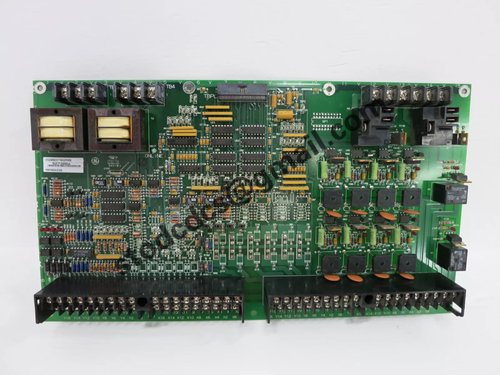

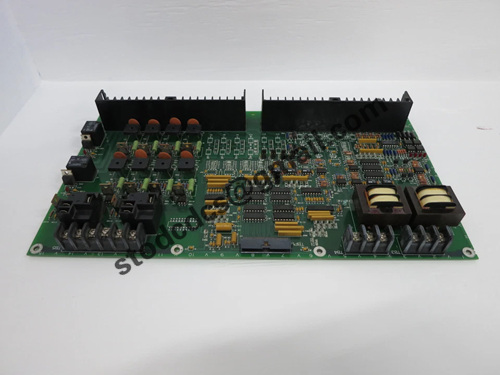

DS200DDTBG2A Driver

Brand:GE
Model:DS200DDTBG2A
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

DS200DDTBG2A Driver

Product manual:

DS200DDTBG2A is a digital signal interface board in the GE Mark V control system,
Mainly used to collect digital input signals from on-site devices and output control instructions to executing devices.
It is a G2 revised model and belongs to the second variant of the DS200DDTBGx series,
Optimized I/O allocation and higher channel compatibility.

2、 Main functions
Digital input acquisition: Connect signal sources such as switches, relay contacts, limiters, sensors, etc.

Digital output control: controls relay coils, solenoid valves, alarms, etc.

Communication with the main control processor: Input/output data is transmitted to the main control board through the backplane bus.

Status monitoring: Monitor the status of each channel through LED lights on the board for easy debugging and operation.

3、 Product Features
Provide multi-channel digital input/output interfaces to adapt to complex industrial applications.

Equipped with photoelectric isolation protection, it improves the system's anti-interference performance and operational stability.

It has self checking and fault indication functions, which facilitate rapid troubleshooting on site.

Support hot plugging and modular replacement, easy maintenance.

Strong configurability, adaptable to various control logic requirements.

4、 Application Fields
This module is widely used in the following industrial control systems, mainly processing signal interaction between devices:

Gas turbine and steam turbine control system: Input/output switch signal, used for protection and interlock logic control.

Power plant DCS/automation system: serves as an interface layer to connect on-site equipment with the main control unit.
