DS200SDCCG1AGD DS215SDCCG1AZZ01B Drive Control Board

Product manual:

Introduction to DS200SDCCG1AGD/DS215SDCCG1AZZ01B Drive Control Board

DS200SDCCG1AGD and DS215SDCCG1AZZ01B are drive control boards in ABB industrial automation systems, mainly used in motor drive or frequency converter systems to achieve logical control, speed regulation, and protection functions for motors.

Module positioning

Belonging to the drive control/motor control module

Installed inside the control cabinet or drive chassis

Control and monitor the operation status of the motor

Main functions

Control motor start stop, forward and reverse rotation, and speed adjustment

Receive control signals from PLC or controller

Output driving instructions to the motor power module

Provide protection for motor overcurrent, overvoltage, short circuit, etc

Support communication with system bus or control network to achieve centralized monitoring

Design and Performance Characteristics

Industrial grade design, suitable for high load and continuous operation environments

Modular structure, convenient for on-site replacement and maintenance

High reliability, ensuring motor control accuracy and response speed

Provide status indication and fault diagnosis functions for quick troubleshooting

Typical application scenarios

Industrial production line motor control

Drive systems for conveying, pumping stations, fans and other equipment

Inverter or servo drive control for automated factories

High reliability and continuous operation motor control environment

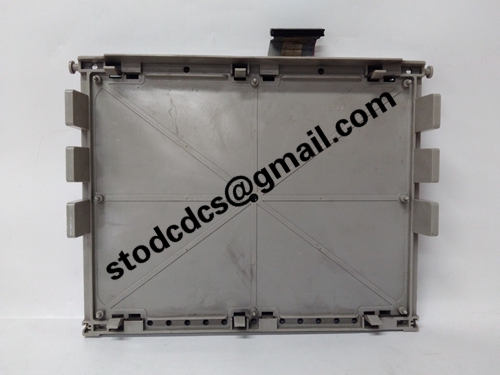

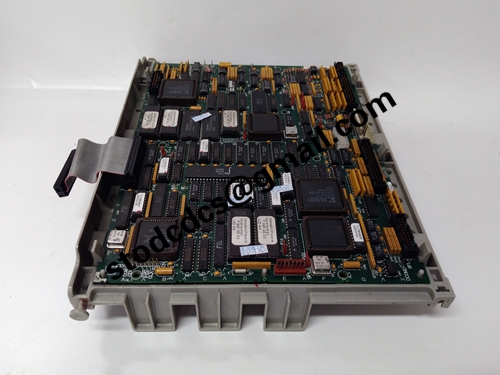

DS200SDCCG1AGD DS215SDCCG1AZZ01B Product details picture:

DS200SDCCG1AGD DS215SDCCG1AZZ01B product video
