EL3773 Analog Network Module

Product manual:

The EL3773 analog network module is an I/O module used in industrial automation systems to process the acquisition, output, and network communication of analog signals. It is typically integrated into distributed control systems or fieldbus systems. It is mainly used to connect the analog signals of sensors and actuators to the control system and exchange data through the network.

core functionality

Analog signal processing

Support multi-channel analog input and output

Can collect analog signals such as voltage and current (such as 0-10 V, 4-20 mA)

Convert analog signals into digital signals for processing by the upper level controller

Output digital signal to drive analog actuator

network communication

Supports communication with fieldbus or industrial Ethernet (such as EtherCAT)

Realize remote data collection and control

Can perform module parameter configuration, diagnosis, and monitoring

system integration

Seamless integration with controller (PLC/PLC module)

Support hot plugging and modular expansion

Implement distributed control and flexible system layout

Main Features

High precision: Analog signal acquisition and output have high accuracy, suitable for precision measurement

Multi channel: usually supports multiple input/output channels to improve system integration

Strong reliability: Industrial grade design, resistant to vibration and interference

Easy to maintain: modular design, supports on-site replacement

Application scenarios

Industrial automation process control (temperature, pressure, flow rate, etc.)

Distributed Measurement and Control System

Instrument signal acquisition

Servo or drive system analog control

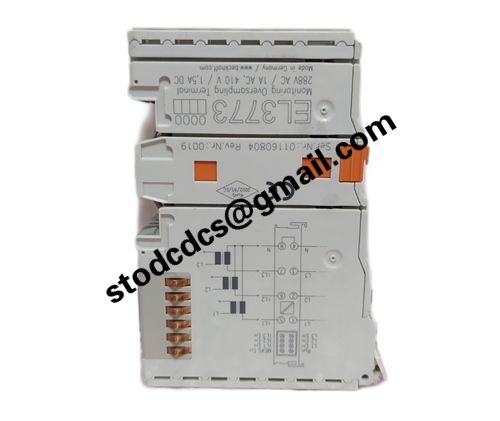

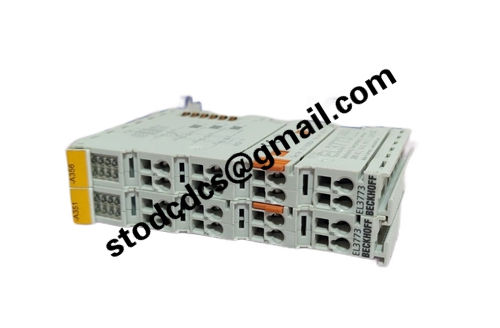

EL3773 Product details picture:
