EMERSON MVME6100 Single Board Computer

Product manual:

1、 Basic Information
Product Name: MVME6100

Manufacturer: Emerson Network Power (now part of Kontron or Artesyn Embedded)

Product Type: VMEbus Single Board Computer (SBC)

Application areas: Industrial control, national defense and military industry, aerospace, energy systems, traffic control and other key task environments

Architecture Platform: PowerPC Architecture

Compliant with standard: ANSI/VITA VME64x specification

2、 Main technical parameters
1. Processor (CPU)
Freescale ™ MPC7457 PowerPC processor (or compatible model)

Main frequency up to 1 GHz

Support AltiVec ™ Vector processing unit (suitable for signal processing and image analysis)

2. Memory
System memory: up to 1GB DDR SDRAM (ECC support)

Flash memory: 64MB Flash (can be used for firmware, boot loader)

NVRAM: 512KB (with battery backup)

Real time clock (RTC): integrated, supports time preservation

3. Bus interface
VME64/VME64x main bus interface

Supports 2eSST and MBLT high-speed data transmission modes

Support Master/Slave functional mode

3、 I/O and Communication Interface
1. Network interface
Dual Gigabit Ethernet ports (10/100/1000Base-T, RJ45)

Based on Intel 82546 chip

2. Serial port
Provide 2 asynchronous serial ports (RS-232 interface)

Usually used for consoles and debugging interfaces

3. USB interface
Supports 1-2 USB 2.0 interfaces (can be used for mouse, USB flash drive, debugging)

4. PMC slot
Provide 2 64 bit PCI Mezzanine Card (PMC) slots

Allow extension of custom I/O or dedicated communication interfaces (such as MIL-STD-1553, CAN, ARINC, etc.)

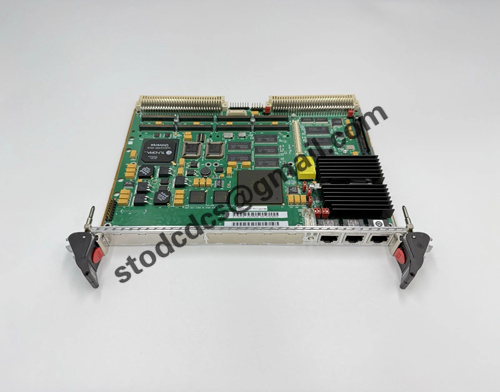

Product details picture:
