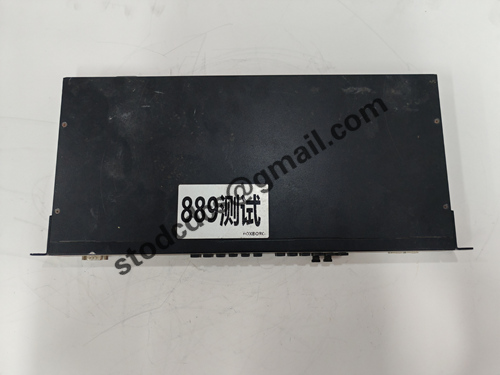

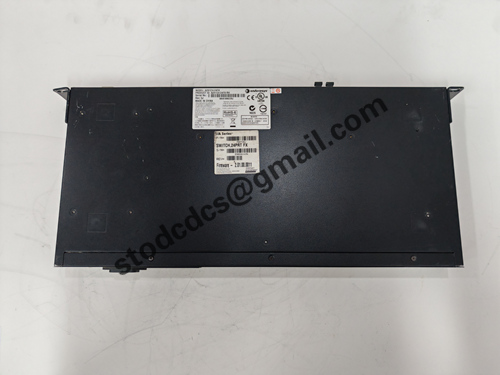

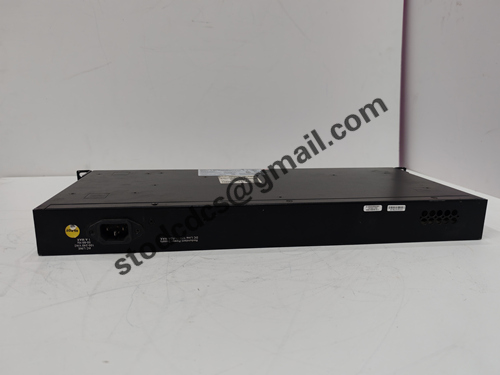

ENTERASYS A2H124-24FX-RH Ethernet Switch

Brand:ENTERASYS
Model: A2H124-24FX-RH
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ENTERASYS A2H124-24FX-RH Ethernet Switch

Product manual:

ENTERASYS A2H124-24FX-RH is a managed Ethernet switch with 24 100BASE-FX fiber ports,
Suitable for industrial or enterprise network environments that require high requirements for long-distance communication and anti-interference capabilities.
Its design emphasizes low power consumption, fanless operation, and silent operation, commonly used in fields such as electricity, rail transit, intelligent manufacturing, and security monitoring.

Main technical parameters
Parameter Description
Interface type 24 × 100BASE-FX SC multimode fiber port
Upstream port 2 x 10/100/1000BASE-T RJ45 port
Switching capacity 8.8 Gbps
Packet forwarding rate 6.5 Mpps
MAC Address Table 8K
VLAN supports IEEE 802.1Q and up to 255 VLANs
Management methods support CLI, Telnet, SNMP, and Web UI
QoS IEEE 802.1p， Support priority queue
Security features: 802.1X authentication, port security ACL
Power input 100-240V AC, 50/60 Hz
Size standard 1U, approximately 44 x 21 x 4.4 cm
Fanless design for heat dissipation, suitable for quiet environments
Working temperature: 0 ° C to 50 ° C

Functional Features
Full optical port design, suitable for industrial deployment in long-distance and high interference environments

Fanless silent operation, suitable for noise sensitive environments such as control rooms

Support rich Layer 2 management features: STP/RSTP, VLAN, QoS, port aggregation

Multiple management methods: Web management interface, command line, SNMP protocol

Support network security features such as 802.1X authentication RADIUS、TACACS+

application area
Industrial Automation and Control Networks

Smart Grid and Energy Communication System

Backbone access layer between universities and corporate parks

Urban rail transit and tunnel monitoring system

In situations where high reliability and fiber optic connectivity are required
