ENTERASYS A2H254-16-RH Ethernet Switch

Brand:ENTERASYS
Model:A2H254-16-RH
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

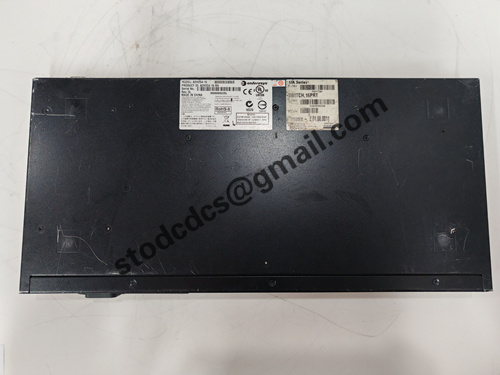

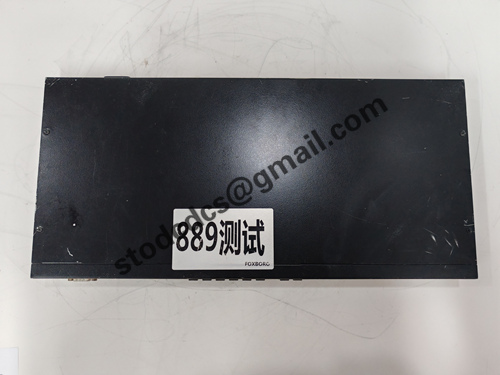

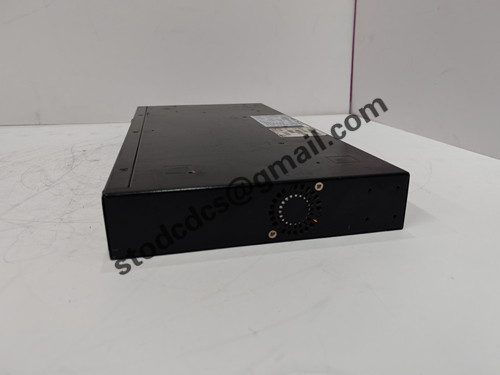

ENTERASYS A2H254-16-RH Ethernet Switch

Product manual:

ENTERASYS A2H254-16-RH is a high-performance, industrial grade managed Ethernet switch in the A2 series.
It is equipped with 16 10/100/1000 Mbps RJ45 ports and 2 shared fiber gigabit SFP upstream ports,
Supports Layer 2 network management and is widely used in enterprise network access layers, industrial automation systems, building cabling, and intelligent transportation communication scenarios.

Main technical parameters
Project parameter description
Interface type 16 × 10/100/1000 Mbps RJ45 port
Upstream port 2 x SFP Gigabit optical port (Combo)
Switching capacity of 32 Gbps
Packet forwarding rate 23.8 Mpps
MAC address capacity of 8000 entries
VLAN supports 802.1Q and 255 VLANs
Management functions CLI, Telnet, SNMP, HTTP/HTTPS, SSH
QoS supports IEEE 802.1p, 4-queue priority scheduling
Security Features: 802.1X, Radius, ACL, Port Security
Redundancy features support RSTP, LACP, ring network redundancy, etc
Cooling method: fanless design (passive cooling)
Power input AC 100-240V, 50/60Hz
Size standard 1U, approximately 44 × 21 × 4.4 cm
Working temperature range: 0 ° C to+50 ° C
Installation method: 19 inch rack mounted or wall mounted (optional)

Feature Highlights
High performance design: Gigabit RJ45 access, SFP optical port uplink, meeting high bandwidth requirements

Full management function: supports policy based VLAN, port aggregation, and bandwidth control

Industrial grade applicability: fanless, low-power, suitable for industrial control rooms and noise sensitive environments

Flexible access method: hybrid design of electrical and optical ports, adaptable to multiple network topologies

Enterprise level security controls include 802.1X, ACL, port isolation, and Radius authentication to ensure network boundary security

Typical application scenarios
Enterprise park network access layer or aggregation layer

Intelligent manufacturing, industrial control network, building automation

Education system, traffic monitoring, smart city applications

Data acquisition front-end or SCADA network front-end communication node
