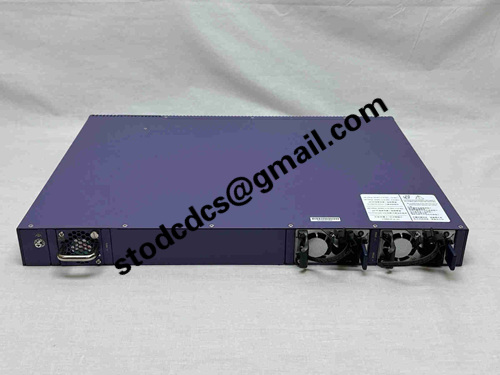

Extreme 5420M-24W-4YE Port Switch

Brand: Extreme Networks
Model:5420M-24W-4YE
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Extreme Networks 5420M-24W-4YE Port Switch

Product manual:

Extreme 5420M-24W-4YE Port Switch Product Features

Product Introduction
The Extreme 5420M-24W-4YE is a high-performance managed switch in the Extreme Networks series, suitable for enterprise network access layer, providing high-density Gigabit Ethernet ports and high-speed 25GbE uplink interfaces. Supports IEEE 802.3bt Type 4 PoE, with a maximum total power of 90W, meeting the power supply needs of wireless access points, IP cameras, and high-power terminals.

Main Features

Port configuration: 24 10/100/1000BASE-T PoE+RJ45 ports, supporting IEEE 802.3bt Type 4 PoE (up to 90W).

Upstream interface: 4 1/10/25Gb SFP28 fiber ports, supporting high-speed uplink and network aggregation.

Stacking interface: 2 SFP-DD stacking ports, which can achieve logical stacking management of multiple switches.

Management interface: 1 10/100/1000BASE-T management port, 1 serial console port, 2 USB Type-A ports, and 1 USB Micro-B console port for management and expansion.

Performance indicators: Switching capacity of approximately 328 Gbps, forwarding rate of approximately 244 Mpps, MAC address table capacity of 16000 entries.

Size and Installation: 1U rack mounted, with dimensions of approximately 44.1 cm x 25.4 cm x 4.4 cm and a weight of approximately 4.5 kg.

Network function: Supports Layer 3 static routing and RIP, with VLAN, link aggregation, spanning tree protocol, ACL and other functions.

Management function: Compatible with Extreme Management system, supports centralized management and configuration.

Application scenarios

Enterprise access layer network deployment

Branch network access

Power supply for high-power terminal equipment (wireless AP, IP camera, digital signage)

Small data center core or aggregation exchange

High performance network aggregation, achieving high-speed data transmission through 25GbE uplink

Precautions for use

Confirm whether the PoE power meets the requirements of the access terminal

Plan links and redundancy strategies before stacking configurations
