Extreme Networks 220-12p-10GE2 Port Switch

Product manual:

Extreme Networks 220-12p-10GE2 Network Switch
1、 Product Overview

Extreme Networks 220-12p-10GE2 belongs to the ExtremeSwitching 220 series, which is a high-performance Gigabit PoE+managed switch designed for small and medium-sized enterprises, branch offices, and campus networks. It provides flexible 10G upstream ports, combines high cost-effectiveness with enterprise level features, and is suitable for deployment in both access layer and edge networks.

2、 Main technical parameters

Port configuration:

12 10/100/1000BASE-T RJ-45 ports (all supporting PoE+power supply)

2 10G SFP+fiber optic uplink ports

PoE total power budget: approximately 185W

Switching Capacity: 56 Gbps

Forwarding Rate: 41.6 Mpps

MAC address table capacity: 8K

Number of VLANs: Supports up to 256 VLANs

Management method:

Web graphical interface

Command Line (CLI)

SNMP v1/v2c/v3

Extreme Cloud Management in the Cloud

Chassis specifications:

1U rack mounted design

Dimensions: Approximately 44mm in height, 441mm in width, and 254mm in depth

Weight approximately 3.5 kg

Cooling method: Intelligent fan control (low-noise design)

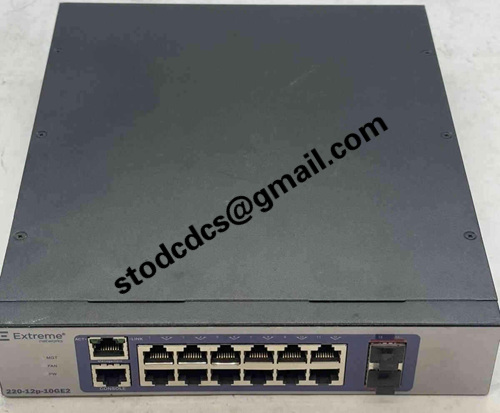

Extreme Networks 220-12p-10GE2 Product details picture:

220-12p-10GE2
