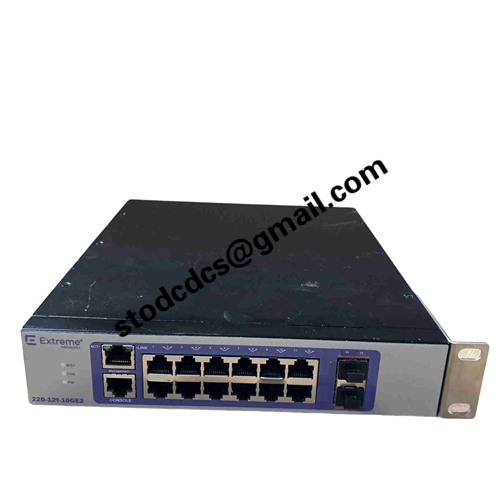

Extreme Networks 220-12t-10GE2 power module

Brand: Extreme Networks
Model:220-12t-10GE2
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Extreme Networks 220-12t-10GE2 power module

Product manual:

Extreme Networks 220-12t-10GE2 Power Module Description
1、 Overall Overview

Extreme Networks 220-12t-10GE2 belongs to the 220 series switches,
In terms of power supply, this switch adopts a built-in fixed AC power supply,
The default configuration does not support user replacement of hot swappable power modules.

2、 Power type and configuration

Power type: Built in fixed AC power supply (non modular)

Input voltage range: 100V~240V AC, 50/60Hz

Rated power consumption: up to approximately 200W (including PoE output)

PoE power supply capability: total power budget of approximately 185W (supporting IEEE 802.3af/at standard)

Cooling method: Built in intelligent fan speed regulation, automatically adjusts the speed according to temperature

3、 Redundant power supply support

Although the main power supply of 220-12t-10GE2 is fixed, this series supports external redundant power supply (RPS),
Used to provide backup power in case of main power failure.
The commonly used redundant power supply model is RPS-150XT, which is an external power supply unit,
It can be connected to the switch through a dedicated cable to achieve redundant protection.

Redundant power supply characteristics:

Output power: approximately 150W

Interface type: Dedicated RPS connection port

Power input: 100-240V AC

Function: Automatically take over power supply in case of main power failure, ensuring continuous operation of network equipment
