Extreme networks X870-32C Base basic switch
Brand: Extreme Networks
Model: X870-32C-BASE
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
Extreme Networks X870-32C Base basic switch
Product manual:
Extreme Networks X870-32C-BASE Switch
1、 Product Overview
The Extreme Networks X870-32C-BASE switch is a high-density 100Gb switch designed specifically for high-performance enterprises and cloud data centers. Equipped with 32 QSFP28 ports, supporting multiple interface speeds of 10Gb, 25Gb, 40Gb, 50Gb, and 100Gb, suitable for high bandwidth applications such as high-density 10Gb rack top aggregation, 25Gb and 50Gb Ethernet, and 100Gb backbone/leaf structure deployment.
2、 Main specifications
Port configuration: 32 QSFP28 ports, supporting multiple interface speeds (10/25/40/50/100Gb)
Exchange capacity: 6.4 Tbps
Forwarding rate: 3.17 Bpps
MAC address table capacity: up to 136000 addresses
CPU/Memory: 1 GHz 64 bit CPU, 2 GB DDR3 ECC memory, 4 GB eMMC flash memory
Power options: Supports 770W AC power and 1100W DC power modules
Fan module: 6 hot swappable fan modules, providing front to back or back to front airflow options
Management ports: Serial console port (RJ-45), 10/100/1000BASE-T management port, Micro USB console, and storage port
Dimensions: Height 4.5 cm, Width 43.2 cm, Depth 48.3 cm
Weight: Approximately 6.9 kg
3、 Key characteristics
High density port configuration to meet high bandwidth application requirements
High performance switching capability ensures high-speed data forwarding
Flexible modular power and fan design, providing redundancy and high availability
Run ExtremeXOS operating system, supporting Layer 2/Layer 3, VLAN, QoS, ACL, VXLAN and other functions
Supports SummitStack-V400 stacking, capable of stacking up to 8 switches
Security features: Supports 802.1X authentication, port security, DoS attack protection

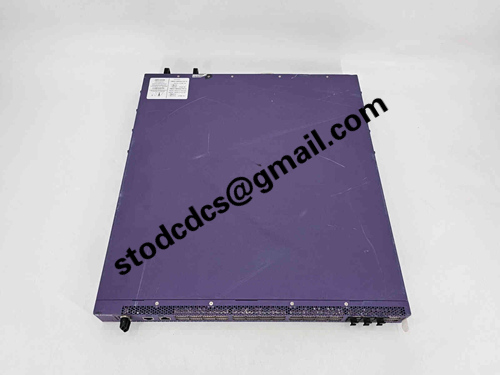

Extreme Networks X870-32C Product details picture:
X870-32C-BASE
Extreme Networks X870-32C product video
