Extreme Networks X870-96X-8C power module

Product manual:

Extreme Networks X870-96X-8C power module

1、 Product Overview
The Extreme Networks X870-96X-8C power module is a redundant power unit designed for the X870 series high-performance switches,
Provide stable DC or AC power supply to ensure that the equipment maintains reliable performance even under high loads and long-term operation.
This module supports hot swappable design and can be replaced or maintained without affecting system operation.

2、 Main technical specifications

Applicable equipment: X870-96X-8C high-density 10G/100Mbps Ethernet switch

Input voltage range: 100-240V AC or -48V DC (specific model optional)

Rated power: 770W/1100W (supported by different versions)

Frequency range: 50/60 Hz

Efficiency level: up to 90% or above

Cooling method: Intelligent temperature control fan for heat dissipation

Installation method: Modular hot swappable design

Indicator light status: Supports power status and alarm indication

3、 Main features

High reliability design: Adopting a redundant power architecture, supporting dual power hot standby, and improving system stability.

Hot swappable support: can be replaced while the device is powered on, without interrupting the operation of the switch.

High energy efficiency conversion: Optimize power conversion efficiency, reduce energy consumption and heat generation.

Intelligent cooling system: automatically adjusts fan speed according to device load and temperature, extending module life.

Modular installation: easy to maintain and expand, supports rapid deployment and replacement.

Power status monitoring: Clear operating status and alarm indications are provided through the front panel LED.

4、 Application Fields

Data center core and aggregation layer network

High Performance Computing (HPC) Environment

Cloud computing and virtualization platform

Core Exchange Node of Enterprise Park

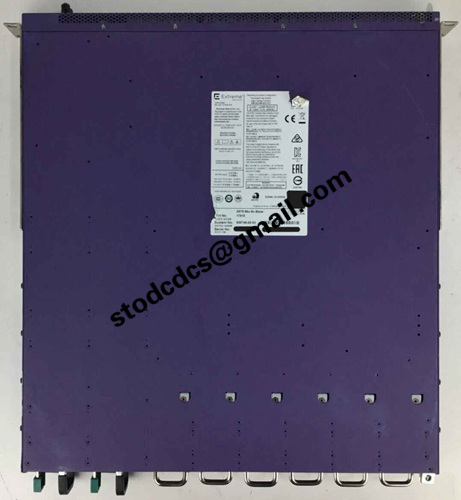

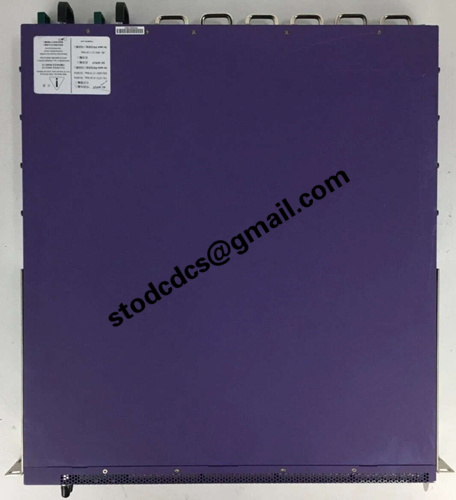

Extreme Networks X870-96X-8C Product details picture:

X870-96X-8C

Extreme Networks X870-96X-8C product video
