FBM237 RH914XS redundant output module

Product manual:

FBM237 RH914XS redundant output module
Product positioning

Redundant output modules for industrial automation control systems

I/O expansion modules belonging to distributed control systems (DCS) or PLC systems

Specially designed for critical industrial control scenarios, ensuring reliable transmission of output signals

core functionality

Provide secure redundant outputs for driving actuators, relays, or warning devices

Reliable transmission of output signals from controllers or main modules to on-site devices

Support dual channel or redundant design to improve system fault tolerance

Built in fault monitoring and status indication for easy maintenance

Technical Features

Industrial grade design, suitable for high temperature, vibration, and electromagnetic interference environments

Multi channel output, capable of simultaneously controlling multiple execution devices

Modular structure, easy to plug and install in the control cabinet

Supports standard industrial voltage and current output specifications, compatible with various field devices

working principle

Redundant output module receives output signals from the main controller or PLC

Internally, redundant circuits and buffering processing are used to improve output reliability

When one output path fails, the other can still ensure signal transmission

The module status indicator light displays the working status and fault information of the channel

Precautions for use

Confirm that the module power supply and output specifications match the system and on-site equipment

Maintain good heat dissipation during installation and avoid high ambient temperatures

Signal wiring should strictly follow terminal identification and system requirements

Regularly check the module status indicator lights and output functions to ensure redundancy and reliability

Summary of Advantages

Improve system output reliability, suitable for critical industrial control and safety systems

Redundant design reduces the risk of single point failure

Industrial grade structure ensures long-term stable operation

Modular design simplifies installation and maintenance work

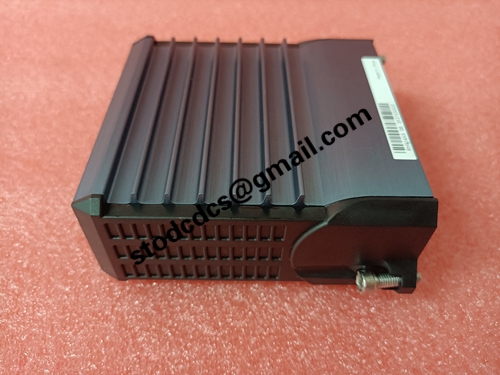

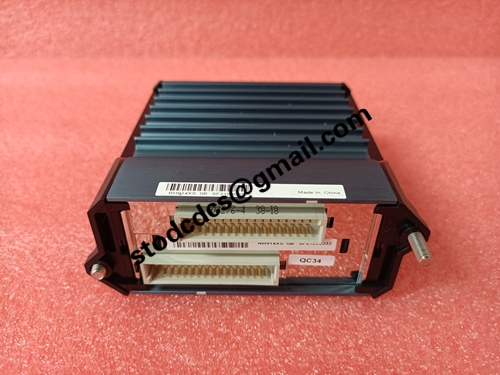

FBM237 RH914XS Product details picture:
