FORCE COMPUTERS SYS68K-CPU-6 Control Board

Product manual:

Product Overview

FORCE COMPUTERS SYS68K-CPU-6 is an embedded controller board (CPU module) based on the Motorola 68K series processor architecture, used for industrial automation, embedded control systems, and communication platforms. This module integrates processors, cache, memory interfaces, and I/O interfaces, and can be used as the core control unit in VME, cPCI, or PC/104 systems, supporting real-time control and data processing. The design emphasizes industrial grade reliability, modular scalability, and high-performance processing capabilities.

Technical parameters (typical features)

Processor: Motorola 68K series

Cache: Level 1/Level 2 cache to improve instruction execution speed

Memory interface: onboard SDRAM/DRAM, expandable capacity

Storage interface: onboard Flash/EEPROM, used for firmware storage and program startup

Bus interface:

Supports VME or cPCI bus (depending on system configuration)

High speed data transmission, compliant with industrial bus standards

I/O interface:

Multiple serial ports (RS-232/RS-422/RS-485)

Parallel port or GPIO

Optional Ethernet interface

Operating system support: VxWorks, RTOS, or embedded Linux, etc

Power supply: onboard voltage regulator, compatible with industrial backplane power supply

Industrial grade design: wide temperature range, vibration resistance, and impact resistance

Application scenarios

Industrial Automation: PLC, Robotics, and Production Line Control Core

Embedded control system: data acquisition, processing, and real-time control

Communication system: Embedded switch or base station control node

Traffic control: Ground control systems for railways, subways, and aviation

Testing and measuring equipment: high-speed data acquisition and control

Military and Aerospace: Embedded Command and Task Processing Platform

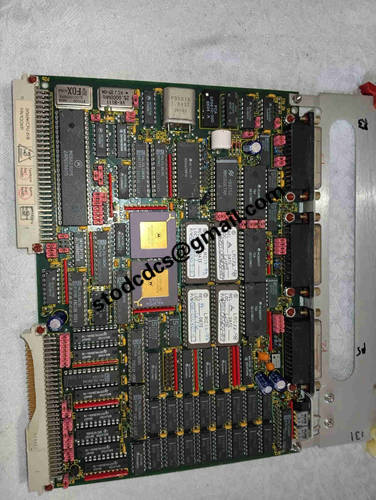

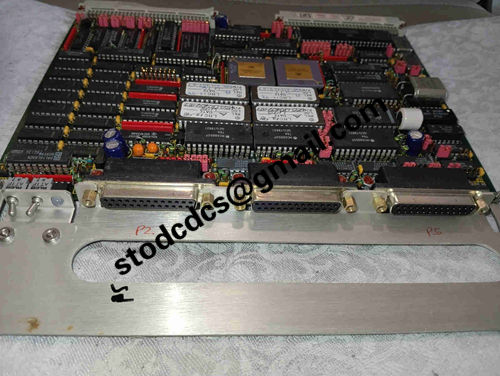

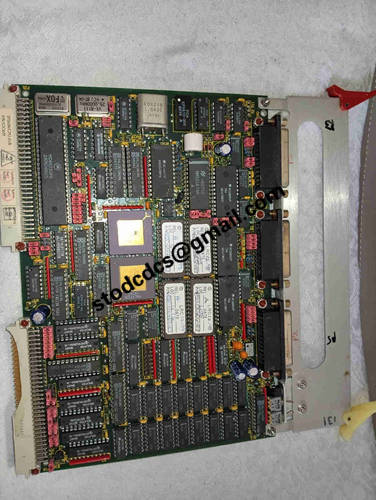

FORCE COMPUTERS SYS68K-CPU-6 Product details picture:

SYS68K-CPU-6

FORCE COMPUTERS SYS68K-CPU-6 product video
