FOXBORO FBM202 P0926EQ thermocouple input module

Product manual:

FBM202 P0926EQ is a thermocouple input module in the Foxboro I/A Series series,
Supports multiple types of thermocouple signals (including K, J, T, E, B, R, S, etc.), enabling high-precision temperature measurement functionality.

Main technical parameters
Project parameter description
Input type: thermocouple input (K, J, T, E, B, R, S, N, etc.)
Number of input channels: 8 channels, isolated thermocouple input
Analog input range related to thermocouple type (automatically compensates for cold junction temperature)
Accuracy (typical) ± 0.1% reading ± 1 ° C (depending on thermocouple type)
Isolation feature: The channel is completely isolated between channels and between power sources and channels
Cold end compensation with built-in cold end temperature compensation (CJC)
Input signal update rate of 50 milliseconds (per channel)
Working temperature range: 0 ° C to 60 ° C (standard module)
Installation method: Install on the Foxboro FBM channel base plate
Communication method with I/A Series control system through module bus communication
The module power is supplied through the system backplane (24 VDC common bus)

Functional Features
Multiple thermocouple compatibility: Supports a wide range of thermocouple standard types to meet various industrial temperature measurement needs

Independent isolation of each channel: Electrical isolation between each input channel improves the system's anti-interference ability and safety

High precision measurement: Built in cold end compensation ensures thermocouple measurement accuracy

Modular design: Hot swappable modules, supporting quick on-site replacement and maintenance

Adaptation System: Fully compatible with Foxboro I/A Series control system, seamlessly integrated

Typical application scenarios
Temperature monitoring in chemical processes

Power plant boiler temperature acquisition system

Pharmaceutical production temperature control system

Temperature control in the food processing and metallurgical industries

Automation of Oil and Gas Refining Process

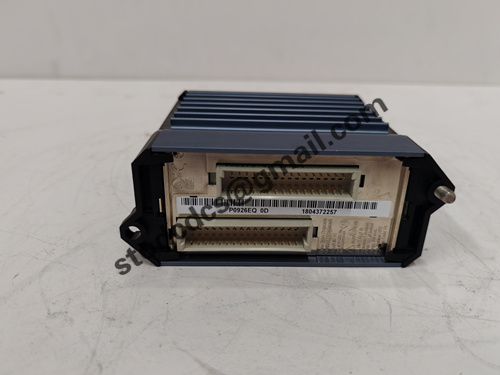

Product details picture:
