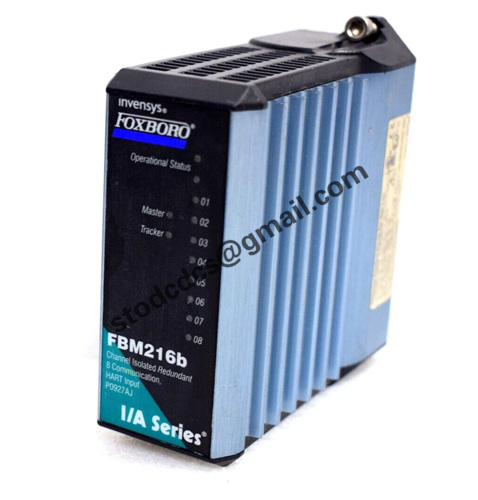

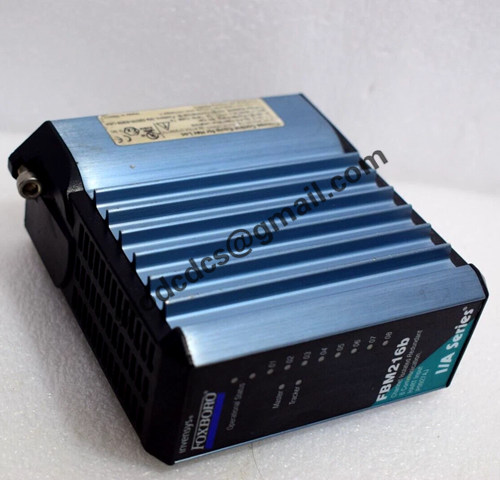

FOXBORO FBM216B P0927AJ Communication Input Module

Brand:FOXBORO
Model:FBM216B P0927AJ
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

FOXBORO FBM216B P0927AJ Communication Input Module

Product manual:

FOXBORO FBM216B P0927AJ Communication Input Module Detailed Explanation
product overview
FBM216B P0927AJ is a communication input module in the Foxboro series control system, specifically designed to support communication with on-site intelligent devices compatible with the HART protocol.

technical specifications

Number of input channels: 8 independent channels, supporting simultaneous input of multiple signals.

Support signal types: 4-20mA analog signal and frequency shift keying (FSK) signal of HART protocol.

Input resistance: Approximately 302 Ω for internal power supply and 282 Ω for external power supply, ensuring compatibility with various field devices.

Measurement accuracy: ± 0.075% of full scale, ensuring high precision of data acquisition.

Resolution: 15 bit resolution, able to reflect signal changes in detail.

Update rate: The data update cycle for each channel is approximately 100 milliseconds.

Communication speed: Supports a communication speed of approximately 2 HART messages per second.

Electrical isolation: 600VAC isolation is achieved between channels and between internal logic circuits of modules, effectively avoiding signal interference and common ground issues.

Power specification: The working voltage of the module is 24V DC ± 5%, and the maximum power consumption is about 7 watts.

Working environment: Suitable for industrial environments ranging from -20 ° C to+70 ° C, humidity range of 5% to 95%, and no condensation conditions.

Module Features

Redundant design: usually used in pairs, providing system redundancy functionality to ensure that a single module failure does not affect overall operation.

High reliability: Industrial grade design standards, suitable for use in harsh on-site environments.

Supports bidirectional HART communication: not only can it collect analog signals, but it can also read and write digital parameters of HART devices.

Easy to install: Supports DIN rail or rack mounted installation, making maintenance and expansion convenient.
