Gasonics 16254-02 Operating Interface Panel

Brand:Gasonics
Model:16254-02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Gasonics 16254-02 Operating Interface Panel

Product manual:

The Gasonics 16254-02 operation interface panel is a human-machine interaction module (HMI) in the Gasonics plasma stripping system, used to control and monitor equipment operation status, provide operation command input, process parameter settings, and system alarm display functions.

1、 Product Overview

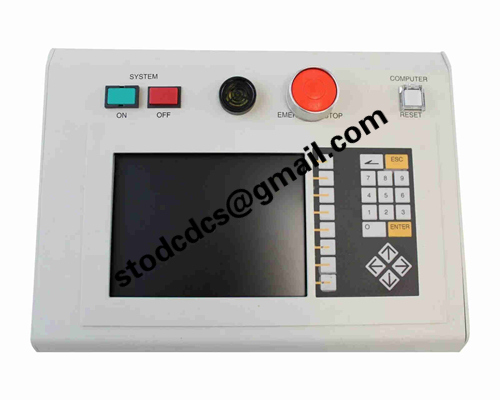

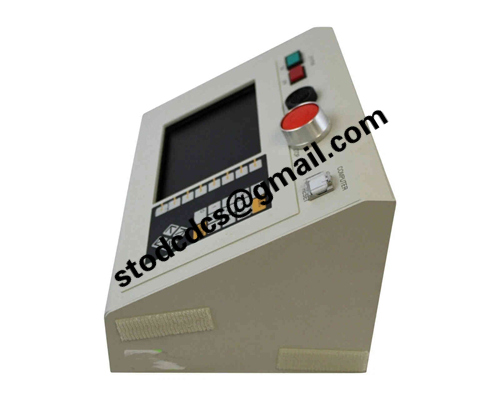

The Gasonics 16254-02 operation interface panel is the main control interface installed on the Gasonics system equipment console,
Usually panel or embedded structure, equipped with buttons, knobs, display screens (such as LCD/VFD, etc.),
It is a bridge between the operator and the equipment. This panel may belong to the control system of Gasonics Aura, L3510, or other early stripping models.

2、 Technical characteristics
Model identification: 16254-02 is the part number, which may represent a specific version of the standard control panel

Interface form: It may be connected to the main controller through parallel port, serial port, or dedicated communication protocol

Operation function:

Device start/stop

Vacuum pump, RF power control

Input of setting parameters such as process time and gas flow rate

Status indicator light/alarm information display

3、 Application scenarios
This panel is suitable for operational control tasks in the following Gasonics devices:

Plasma stripping system (such as Gasonics Aura 2000, L3510, PEP series)

Initiate and monitor operations such as photoresist removal and cavity cleaning

Production line interactive interface

Interact with the front-end feeding system or back-end testing system to set process parameters
