Gasonics 16321-01 D power module

Product manual:

Product Name: Gasonics 16321-01 D Power Module
Component type: DC stabilized power supply/power supply module
Main function: Provide stable low-voltage DC power supply for control systems, drive modules, sensors, etc. in Gasonics plasma cleaning equipment

1、 Core power supply unit of control system
This module is usually installed in the control rack of Gasonics cleaning equipment (such as Aura series, AE series) and is the main DC power source for various electronic control subsystems of the equipment.

Main output specifications (reference, specific models need to be measured and confirmed):

Multi channel DC output: such as+5V,+15V, -15V,+24V, etc

Total power output level: approximately 100W-200W (depending on the model)

High stability and load response capability

2、 Support module/device power supply
The 16321-01 D module provides power support for various key components:

Interface control panel (such as A95-108-02)

Stepper driver (such as RD-323M10)

Photoelectric sensor (such as A89-004-01)

I/O output module (such as A39-1485)

Main control logic circuit board, display panel, warning light

3、 Electrical characteristics and protection functions
This module has stable output and protection functions of standard industrial power supply:

Overcurrent protection: prevent module damage caused by load short circuit

Overvoltage protection: prevent damage to the circuit board

Over temperature protection: prevent the power module from overheating and burning out internally

Anti interference filtering: suitable for complex electromagnetic environments of RF plasma equipment

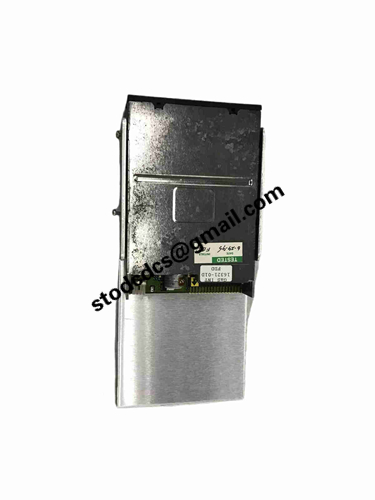

Product details picture:

16321-01 D
