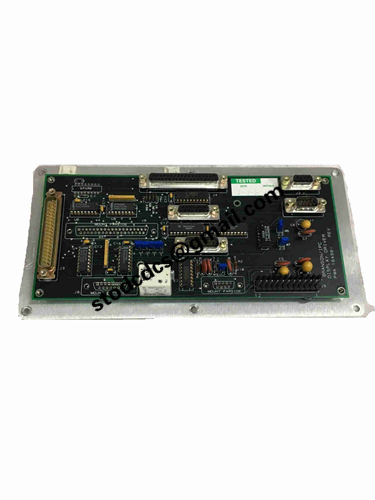

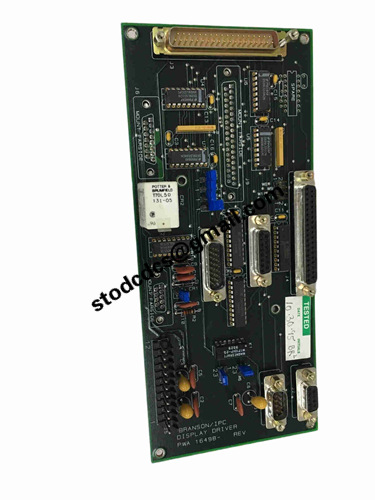

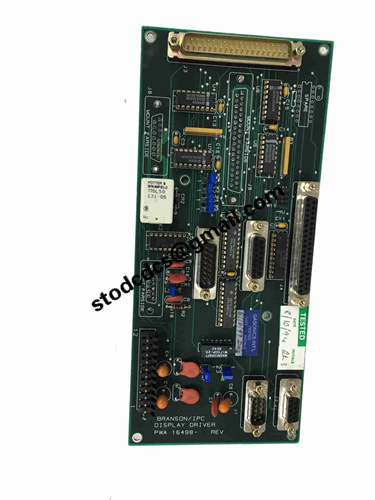

Gasonics 16498-01 B Display Driver

Brand:Gasonics
Model:16498-01 B
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Gasonics 16498-01 B Display Driver

Product manual:

1、 Product Overview
Gasonics 16498-01 B is a Gasonics plasma equipment
Display Driver Module used for graphical interface systems in Aura or PEP series.
The main function of this module is to convert the digital signals or graphic data output by the control system into compatible front-end display screens
Drive signals in formats such as LCD or touch panels to achieve visual presentation of information on the screen.

This driver is often used as an intermediate control layer, connecting the main control board and the user operation panel (HMI),
Support real-time display of graphical menus, parameter displays, alarm information, and other content.

2、 Application Fields
1. Plasma Asher/Cleaner
Drive the graphic or character display interface on the main operation panel;

Real time display of equipment status, process parameters, alarm information, etc.

2. Human Machine Interface System (HMI)
Collaborate with the control motherboard to achieve dynamic updates of the user interface;

Supports multiple display protocols (such as TTL, LVDS, VGA, etc.) output formats.

3. Maintenance and debugging support
Display debugging status, system logs, and error codes;

Provide a graphical visualization interface for device operation information.

3、 Product advantages
✅ High compatibility design: suitable for multiple models of Gasonics display panels and main control systems;
✅ Stable image processing performance: can drive dynamic graphics and text interfaces in real time;
Low power consumption and high efficiency: suitable for continuous operation of embedded systems;
✅ Strong anti-interference ability: maintains stable image output in high electromagnetic interference environments;
✅ Modular structure: facilitates quick on-site replacement and maintenance.
