Gasonics 68-0131 Driver Module

Product manual:

product name
Gasonics 68-0131 Driver Module
(English: Driver Module)

1、 Product Overview
Gasonics 68-0131 is a driver module used in Gasonics plasma cleaning and ashing equipment, primarily for controlling the on/off status of electrical actuators such as solenoid valves, stepper motors, relays, heat sources, or other actuating components. This module receives control signals from the main control system and drives external devices through power output to ensure the coordinated and automatic operation of each process link.

2、 Technical parameters
Module Type: Digital/Analog Driver Module

Input signal type:

Digital trigger signal (TTL/CMOS) or logic control signal

Output capability:

Can control 12V/24V DC electromagnetic equipment or AC relays (depending on configuration)

Control channel:

Single or multiple outputs, depending on module configuration

Power output mode:

Transistor switch (MOSFET) or relay output

Electrical isolation:

Usually equipped with optocoupler isolation protection main control system

Installation method:

Card type and plug-in structure, convenient for modular installation inside the device

Communication method:

Connected to the main control card via backplane bus or point-to-point connection

Power supply:

Usually+24V DC industrial power input

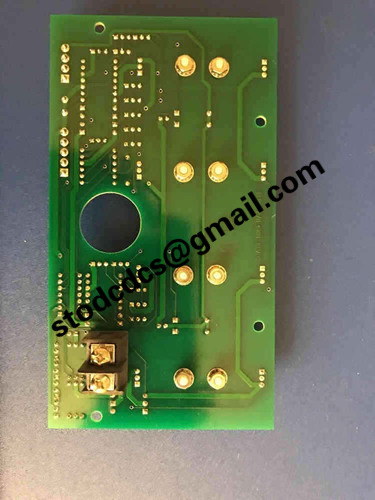

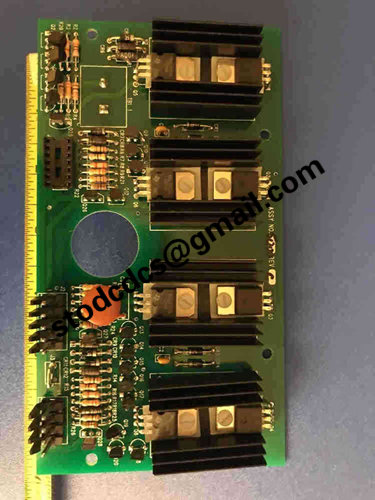

Product details picture:

68-0131
