Gasonics 90-2678 B W/90-2679 Control Panel

Brand:Gasonics
Model:90-2678 B W/90-2679
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Gasonics 90-2678 B W/90-2679 Control Panel

Product manual:

Gasonics 90-2678 B and 90-2679 control panel combination
It is a human-machine interaction control interface system (HMI control panel) in Gasonics plasma stripping equipment,
Used for key functions such as parameter setting, status monitoring, process control, and alarm management of equipment by operators.

1、 Product Overview
90-2678 B and 90-2679 are two sub components of the Gasonics control panel system:

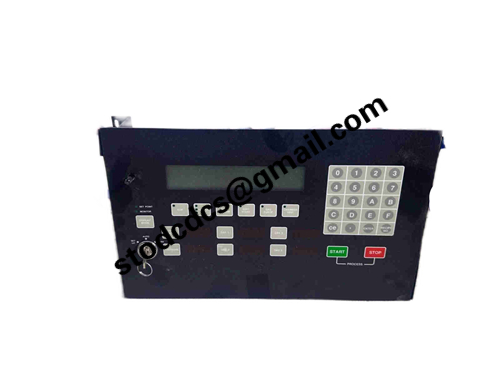

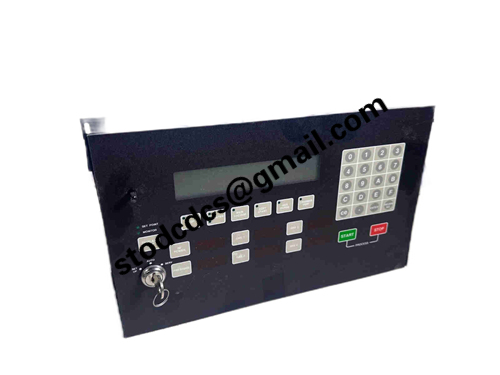

90-2678 B: Main function input panel (may include LCD display, buttons, indicator lights)

90-2679: Auxiliary control module, which may be a switch, power control, or function selection key area

They are usually installed on the front panel of the device and integrated to form a complete user interface,
Specially used for plasma processing equipment such as Gasonics Aura 2000, PEP 3510, L3510, etc.

2、 Functional division and characteristics
Module Number Function Description
90-2678 B main control panel, may include:

Display screen (VFD or LCD)

Function menu selection button

Process control buttons (START/STOP/RESET)

Status indicator lights (Power, Vacuum, RF, Alarm)|
|90-2679 | Auxiliary control module, which may include:

Power switch or key lock switch

Manual/automatic mode selection switch

Safety interlock reset button

Extended signal interface connected to 90-2678|

These two panels are connected to the main controller (such as I/O board or PLC control board) through built-in cables or connectors,
Together form a complete control input/output system.
