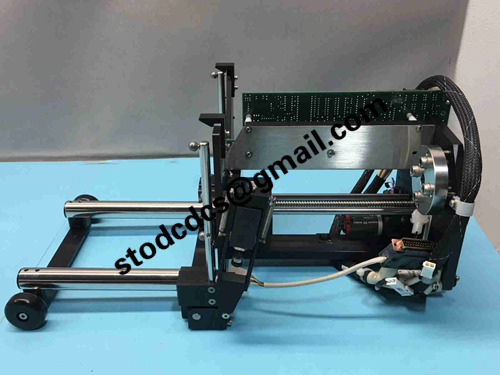

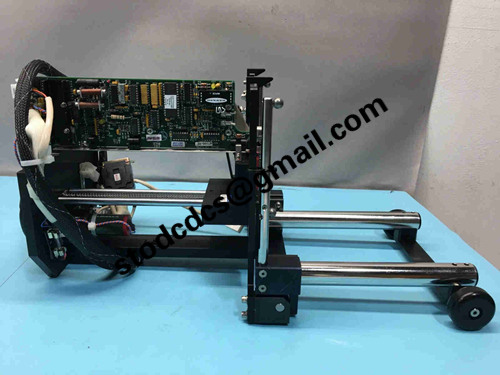

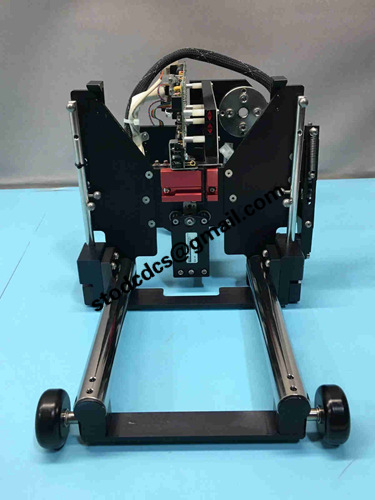

Gasonics 94-1174 Top Level Indexer

Brand:Gasonics
Model:94-1174
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Gasonics 94-1174 Top Level Indexer

Product manual:

The Gasonics 94-1174 Top Indexer is a wafer positioning and handling sub component used in Gasonics plasma stripping systems, typically responsible for precise top positioning, lifting, or loading/unloading operations of wafers during wafer processing. It is one of the critical actuators in automated wafer handling systems.

1、 Product Overview
The Gasonics 94-1174 Top Indexer is a mechanical pneumatic or electric combination driven positioning device,
Mainly installed at the top of the wafer handling area of the equipment (such as Load Station or Transfer Chamber),
Used in conjunction with mechanical arms, lifting platforms, and other mechanisms to achieve precise positioning and short distance vertical movement of wafers in the Z-axis direction.

2、 Technical functions
Function Category Function Description
Precision wafer positioning fine tunes the wafer in the X-Y or Z-axis direction to ensure alignment and facilitate entry into the processing chamber
Vertical lifting and lowering (in the Z direction) during wafer handling to assist in loading/unloading wafers
Sensor feedback built-in proximity/photoelectric sensor, used to detect whether the wafer is in place or offset
Automatic synchronization control is coordinated with the main control system or robot handling program to achieve automatic process linkage

3、 Application scenarios
The Gasonics 94-1174 top-level indexer is widely used in the following devices and scenarios:

Upper/lower wafer area in Gasonics plasma stripping equipment

Typical examples include Aura 2000, PEP 3510, and L3510 series, which are responsible for the initial alignment of wafers before entering the processing chamber

Positioning device in automatic wafer handling system

Coordinated positioning with vacuum robotic arm, rotating platform or horizontal conveyor track

Wafer inspection and pre alignment process

Scan, locate notches or align reference edges on the surface of the wafer before processing
