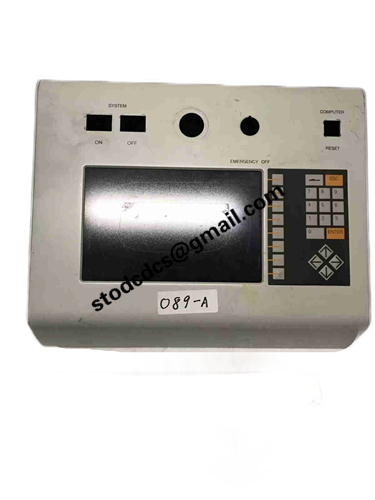

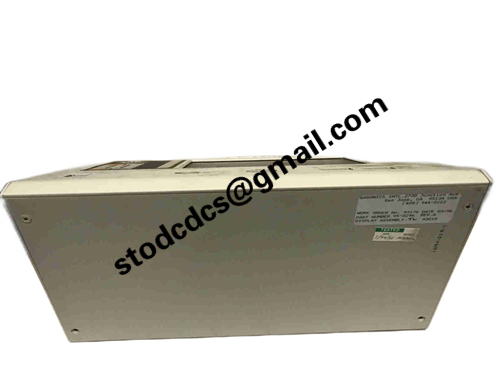

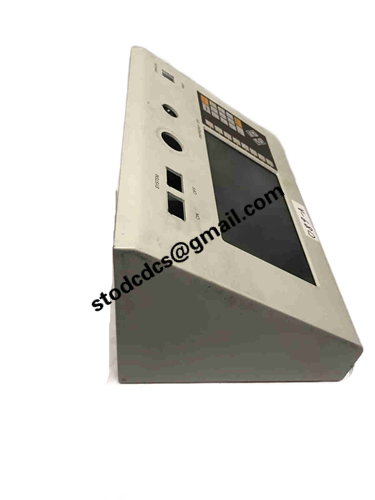

Gasonics 95-0296 AWM-B-4-7 Display Assembly Monitor

Brand:Gasonics
Model:95-0296 AWM-B-4-7
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Gasonics 95-0296 AWM-B-4-7 Display Assembly Monitor

Product manual:

The Gasonics 95-0296 AWM-B-4-7 display assembly monitor is an industrial grade human-machine interface (HMI) display component used on Gasonics plasma stripping equipment. Its function is to provide graphical real-time display of equipment operating status, process flow, alarm information, etc., making it easy for operators to monitor the system and adjust parameters.

1、 Product Overview
Gasonics 95-0296 (part number)+AWM-B-4-7 (model identification) display assembly monitor,
The display module assembly belonging to the control area of the device front panel is the visual window of the entire operating system, usually including:

Industrial LCD screen or plasma screen

Power driver board, cable connection components

Embedded installation design integrated into metal casing or panel components

This type of module is mainly used in mainstream plasma stripping systems such as Gasonics Aura, L3510, PEP 3510, etc.

2、 Technical characteristics
Project Description
Model number AWM-B-4-7 (AWM usually represents Assembly Workstation Monitor)
Gasonics P/N 95-0296
Screen type: Industrial grade LCD/VFD display (some older models may use CRT)
The size/resolution may be 6-10 inches, depending on the device model and year
Signal input usually uses VGA or dedicated display signal interface
Installation method: Embedded panel with fixed bracket or cover

3、 Application scenarios
This display monitor is widely used in the following devices and tasks:

Gasonics plasma stripping system main control panel

Real time display of process parameters (such as RF power, gas flow rate, vacuum degree, time)

Display the system's operating status, steps, processes, and alarm information

Equipment maintenance and debugging interface

Used for advanced operations such as equipment initialization and error diagnosis in engineering mode

Work in conjunction with touch or button control panels

Combine with control panel buttons or keyboard to complete the complete human-computer interaction process
