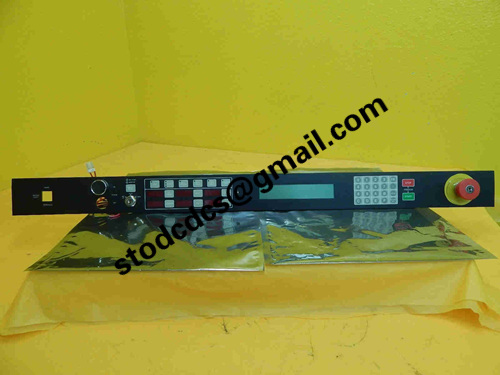

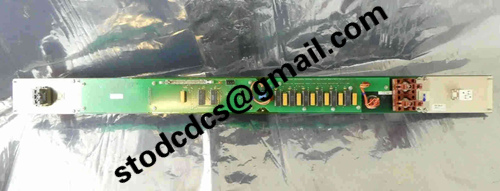

Gasonics A95-108-02 Interface Control Panel

Brand:Gasonics
Model: A95-108-02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Gasonics A95-108-02 Interface Control Panel

Product manual:

Product Name: Gasonics A95-108-02 Interface Control Panel
Component type: Human Machine Interface (HMI)/Signal Interface Board
Main function: Provide device operation, status display, and control command input functions, serving as the interface between users and device control systems

1、 Human Machine Interaction Interface (HMI) Core Components
This panel is used for the front-end operation in Gasonics plasma processing equipment (such as Aura, L3500, AE series, etc.), providing buttons, switches, LED displays or signal indications for real-time monitoring and control.

Typical use:

Display device operating status (such as "Processing", "Ready", "Fault")

Start/stop processing flow or executing subtasks

Select the operating mode (such as Auto, Manual, Service)

Alarm status and confirmation operation feedback

2、 Interface nodes for signal communication with the main control system
The A95-108-02 interface control panel serves as a signal transmission intermediary, connecting the logic control circuit between the operator input and the equipment PLC or main control board.

Related signal types:

Digital Input/Output (DI/DO)

TTL or 24V industrial standard control signal

Control relay drive and trigger alarm buzzer

3、 Equipment maintenance and debugging auxiliary tools
This panel serves as the main operating interface for on-site technicians during equipment maintenance or debugging, and can achieve functions such as quick start, stop, reset, or entering manual mode.

Maintain the application:

Enter manual mode to manually test the lifting platform, valves RF

Display the current processing status or alarm code

Trigger test mode for system self-test
