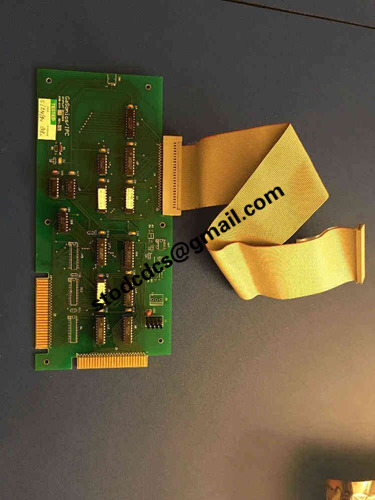

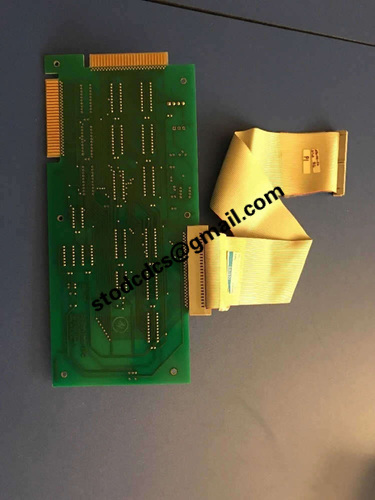

Gasonics A98-014-01 Display Decoder

Brand:Gasonics
Model: A98-014-01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Gasonics A98-014-01 Display Decoder

Product manual:

1、 Product Overview
Gasonics A98-014-01 is a Display Decoder Module specifically designed for Gasonics plasma equipment,
The main function is to parse and convert data signals from autonomous control systems or interface panels into graphical or character information,
Visually output on the front-end display or interface terminal.
This module is typically located in the human-machine interface (HMI) system of the device, responsible for bridging digital signals to visual interface information.

2、 Application Fields
1. Plasma processing equipment (such as Aura/PEP series)
Decoding process flow status, temperature/pressure sensor data, timing information, etc. and outputting them to the main display screen;

Support the conversion of text and graphics such as alarms, operating status, and system prompts.

2. Linkage between control panel and LCD screen
Connect the main control board to the touch screen or LCD screen to perform information driven tasks;

Parse interface command signals and drive graphic/character output.

3. System debugging and status monitoring module
Used for debugging engineers to visually monitor the status of underlying signals;

Support intuitive display of process logs or error codes on the screen.

3、 Product advantages
✅ High compatibility design: fully compatible with Gasonics original LCD screen and HMI system;

✅ Real time data decoding capability: able to quickly respond to signals from the main control system, ensuring synchronized interface updates;
