GE DS200TCDAH1B Digital I/O Board

Product manual:

The GE DS200TCDAH1B digital I/O board is a digital input/output module in General Electric's (GE) automation control system,
Mainly used for collecting and transmitting digital signals in industrial automation systems,
Support interface connection with PLC or DCS systems to achieve digital signal acquisition and control of on-site equipment.

1、 Basic Product Information
Project Content
Brand GE (General Electric)
Model DS200TCDAH1B
Type: Digital Input/Output (I/O) Module
Application System GE Fanuc Series 90-30/90-70 PLC Series
Function: Collect digital signals and output control signals

2、 Main functions
Digital input: Collect on-site switch signals, such as buttons, switches, sensor contacts, etc.

Digital output: Output digital control signals to actuators, relays, indicator lights, etc.

Signal isolation: Electrical isolation of input and output signals to improve anti-interference ability.

Modular design: suitable for PLC rack slot installation, easy to expand and maintain.

Status indication: equipped with LED indicator lights, displaying the working status of the channel.

3、 Technical parameters (reference)
Parameter Description
Input points, multi-channel digital input
Output point count multi-channel digital output
Common industrial standards for input voltage range of 24 V DC
Output type: transistor or relay driven (depending on specific design)
Signal isolation and optoelectronic isolation enhance anti-interference capability
Working temperature range -20 ° C to+60 ° C
Installation method: Plug in module, compatible with GE Fanuc PLC rack

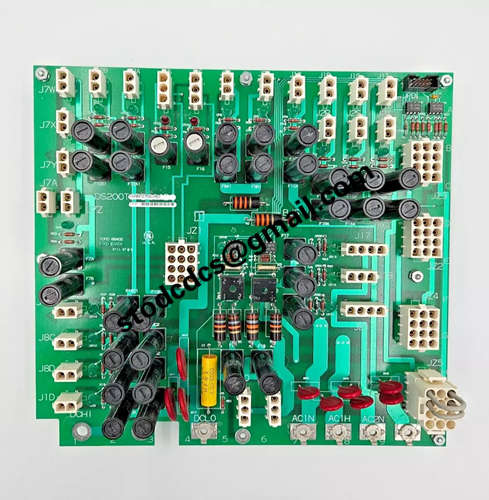

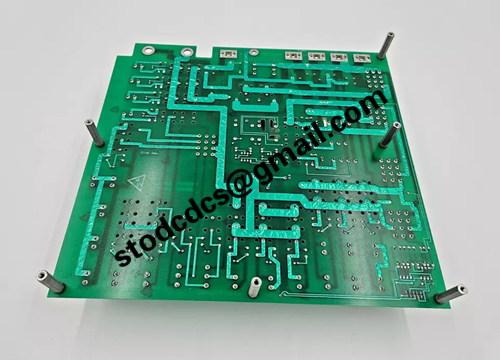

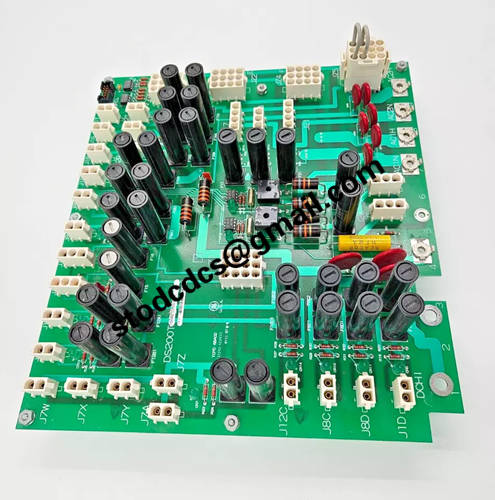

Product details picture:

DS200TCDAH1B
