GS&LEWIS 501-02984-01 Interface Board
Product manual:
Product Overview
The Giddings&Lewis 501-02984-01 interface board is a key module in the PiC series control system, used to implement signal interface conversion between the controller and external devices or other modules. It can receive signals from processors or input modules and convert them into control signals suitable for downstream devices. At the same time, it can also transmit feedback signals from external devices to the control system, achieving bidirectional signal transmission and processing.
Product Features
Multi channel signal interface
Provide multiple independent input/output channels, capable of processing multiple signals simultaneously.
Supports digital quantities and logical signals to meet various industrial control requirements.
High reliability design
Manufacturing of industrial grade electronic components to ensure long-term stable operation.
Strong resistance to vibration and impact, suitable for complex industrial environments.
Electrical isolation and protection
The input and output channels have optoelectronic isolation to improve the system's anti-interference ability.
Built in overcurrent and short-circuit protection to prevent damage to modules and connected devices.
Convenient status indication and maintenance
The LED indicator light displays the signal status and module operation.
Modular design facilitates on-site installation, debugging, and replacement.
Compatibility and Scalability
Can seamlessly connect with PiC series controllers and input/output modules.
Support system expansion, suitable for medium and large-scale automation control systems.
Application field
Numerical Control Machine Tool: Connect sensors, encoders, and actuators to achieve machine tool motion and machining process control.
Automated production line: Implement signal interfaces between controllers and conveyor systems, sorting machinery, and assembly equipment.
Process control system: processes sensor signals and controls valves, pumps, and alarm devices.
Industrial equipment monitoring: Provide data acquisition and control interfaces to achieve equipment status monitoring and control.

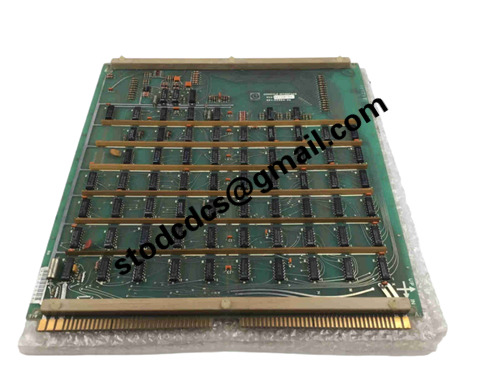

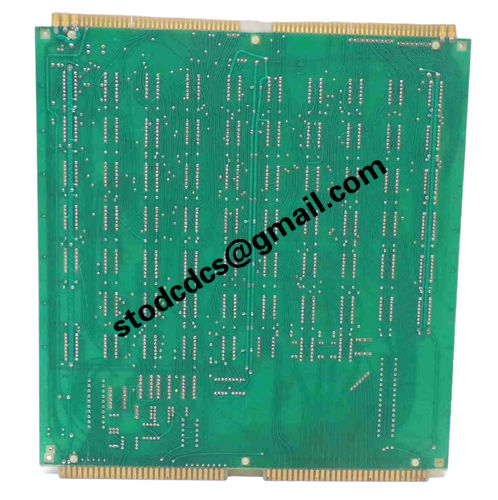

Product details picture:

501-02984-01
