GIDINGS&LEWIS 501-04768-00 Code Board

Product manual:

GIDINGS&LEWIS 501-04768-00 Code Board
Product application areas

Numerical Control Machine Tool (CNC) System

The motion control unit used for machine tools serves as a key signal source for position and velocity encoding.

Assist the spindle and feed system in achieving high-precision positioning and synchronous control.

Automatic production line

Provide coding signals in assembly, testing, and conveying equipment to ensure process coordination.

Realize real-time feedback on motor speed, angle, and position to improve automation efficiency.

Robots and Motion Control

Applied to precise angle measurement of industrial robot joints, ensuring the accuracy of trajectory motion.

Suitable for multi axis linkage control scenarios, improving overall system synchronization.

Process Control and Monitoring

Used to monitor the operating status of rotating equipment in continuous production fields such as metallurgy, textiles, and papermaking.

By encoding signal feedback, the controllability and safety of equipment operation can be improved.

Energy and Power Equipment

Provide speed and angle feedback in rotating machinery such as wind turbines, generator sets, and turbines.

Ensure that the speed control system and protective devices receive accurate information in a timely manner.

High end manufacturing equipment

Applied to high-precision industries such as aerospace, precision machining, and semiconductor manufacturing.

Meet the extremely high process requirements for position accuracy and repetitive positioning.

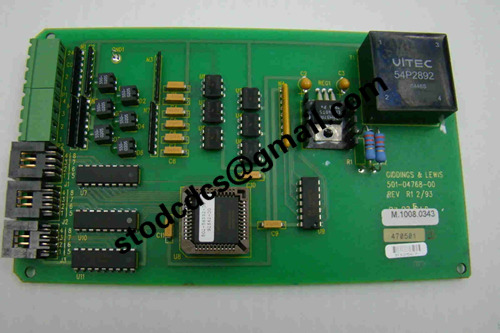

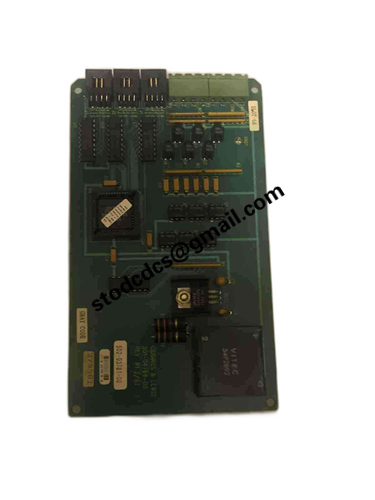

Product details picture:

501-04768-00
