GIDINGS&LEWIS 502-03431-10 machine interface board
Brand:GIDDINGS & LEWIS
Model:502-03431-10
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
GIDINGS&LEWIS 502-03431-10 machine interface board
Product manual:
GIDDINGS&LEWIS 502-03431-10 Machine Interface Board
1、 Product Overview
GIDDINGS&LEWIS 502-03431-10 is a machine interface board for industrial control systems,
Used for signal exchange and interface conversion between control systems and machine tools or automation equipment.
This board connects the control signals of the CPU module, I/O module, and driver module with the input/output signals of the mechanical equipment,
Realize seamless communication between the control system and the machine. It is widely used in CNC machine tools, automated production lines, and robot systems.
2、 Technical parameters (typical indicators, actual subject to physical object)
Module Type: Machine Interface Board
Interface type: digital and analog input/output interface
Signal voltage: DC 5V/24V (industrial standard)
Number of channels: Multi channel I/O (depending on specific configuration)
Isolation method: Some channels have optoelectronic isolation to improve anti-interference ability
Working voltage: DC 5V/24V provided by the system rack
Status indication: LED displays the status of power supply and various channel signals
Installation method: Modular slot design for quick installation and replacement
Work environment: Industrial grade temperature, anti vibration and anti electromagnetic interference design
3、 Application scenarios
CNC machine tool
Implement signal connections between CPU modules and mechanical interfaces such as limit switches, emergency stop switches, and spindle control.
Automatic production line
Connect sensors, actuators, and control modules to achieve production process control and status acquisition.
robot system
Transmit the output signal of the controller to the robotic arm driver or end effector to achieve precise action.
Testing and experimental platform
Provide interfaces between control systems, experimental equipment, and testing instruments to achieve data acquisition and control.
process control system
In the industrial fields of chemical, pharmaceutical, packaging, etc., logic control signals are effectively connected to on-site equipment.

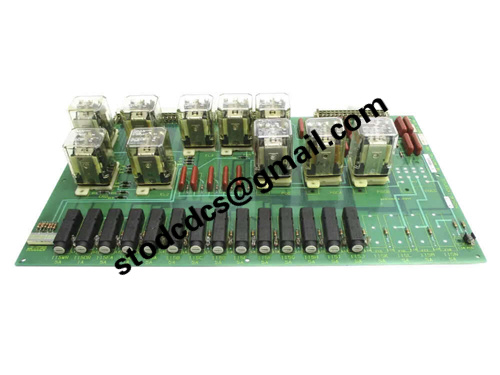

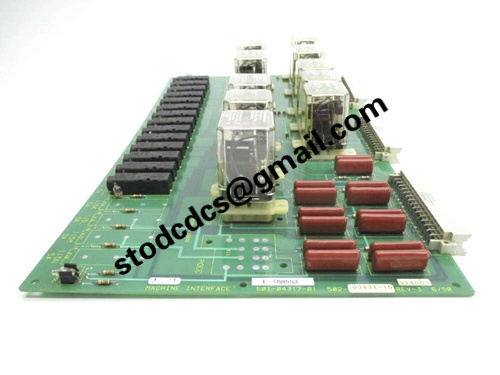

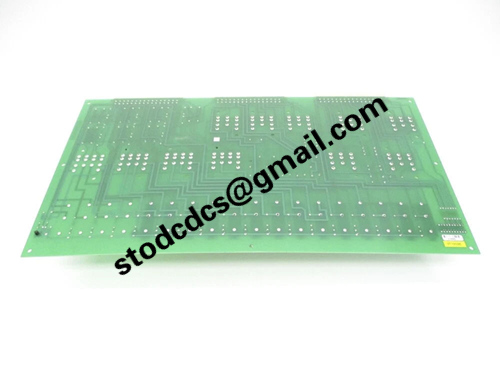

Product details picture:
502-03431-10
