GIDINGS&LEWIS 502-03674-00 DC Water Tank Output Module

Product manual:

GIDINGS&LEWIS 502-03674-00 DC Water Tank Output Module
1、 Product Overview

GIDINGS&LEWIS 502-03674-00 DC Water Tank Output Module is a DC output interface unit used in industrial automation control systems.
This module is mainly responsible for converting the logic signals output by the CPU or controller into DC output signals that can drive external loads, which are used to control devices such as relays, contactors, indicator lights, and actuators.
It adopts a DC Sink/Source output method, which can adapt to different types of industrial loads and has the characteristics of fast response speed, strong isolation, and high reliability.

2、 Technical parameters (typical indicators, actual subject to physical object)

Module type: Digital DC output module

Number of channels: 8/16 channels (depending on configuration)

Output mode: DC sink/source output

Voltage level: DC 24V (typical), some models support DC 12-48V

Output current: Single channel 0.5A-2A

Isolation method: Optocoupler isolation to enhance signal anti-interference ability

Response time: ≤ 1ms, meets high-speed switch requirements

Interface method: Modular slot design, compatible with GIDDINGS&LEWIS control system bus

Protection functions: overcurrent protection, short circuit protection

3、 Application scenarios

Numerical Control Machine Tool Control

Control external DC loads such as cooling pumps, lubrication systems, alarm lights, etc.

Automatic production line

Used to drive actuators (solenoid valves, DC motors) and achieve process action control.

robot system

Control end effectors, fixtures, and signal indicating devices.

Packaging and Printing Machinery

Accurately control the DC load in the conveying, sorting, and positioning units.

Testing and Inspection Equipment

Output control signals to drive test fixtures, signal lights, and execution components.

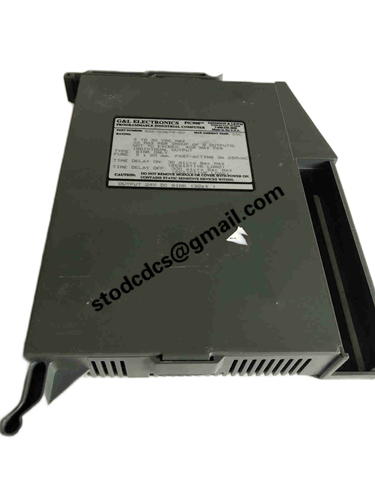

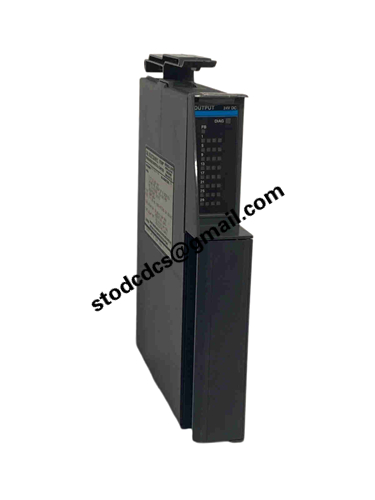

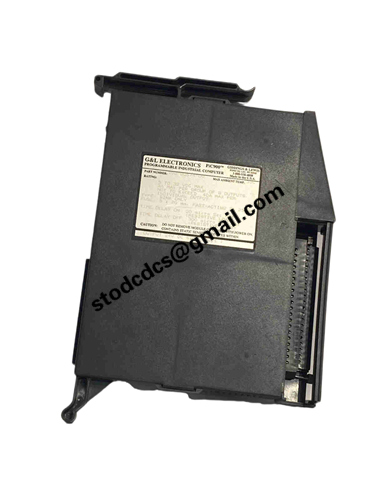

Product details picture:
