GIDINGS&LEWIS 502-03677-02 Output Module
Brand:GIDDINGS & LEWIS
Model:502-03677-02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
GIDINGS&LEWIS 502-03677-02 Output Module
Product manual:
GIDINGS&LEWIS 502-03677-02 Output Module
Product Overview
502-03677-02 is a stepper motor output module used in the Giddings&Lewis PIC900 control system, mainly used to provide high-speed pulse control signals for multi-channel stepper drivers, with high performance, strong compatibility, and industrial grade reliability.
Main technical features
control ability
Supports up to 8 channels for stepper motors
The maximum step rate can reach 1000000 steps per second
Acceleration/deceleration rate range: 1~16777215 steps/second ²
Position range: ± 2147352575 steps
Power supply and isolation
On site power supply range: 4.5VDC~20VDC
Each channel consumes approximately 45 mA of power
Logic side power consumption: approximately 404 mA @+5V (full channel operation), with an additional 6 mA per channel
Optical isolation design ensures that logic and on-site circuits are independent of each other
Interface and Instructions
On site interface: 40 pin card slot connector+screw terminal
Status indicator: DIAG LED, turns off after module power on self-test passes
environmental adaptability
Working temperature: 7 ° C~55 ° C
Storage temperature: -40 ° C~85 ° C
Relative humidity: 5%~95%, no condensation
Anti vibration: amplitude of 0.15mm at 10-57Hz; acceleration of 2g at 57-2000Hz
Impact resistance: 15g, 11ms half sine pulse, once in each direction
Electromagnetic Compatibility
Meet industrial grade EMC requirements, with anti-static, RF interference, and electrical fast transient capabilities
Electromagnetic radiation level: Industrial equipment Class A
Physical dimensions
Width approximately 41 mm
Approximately 305 mm in height
Approximately 213 mm deep
Moderate weight, easy to install inside the cabinet

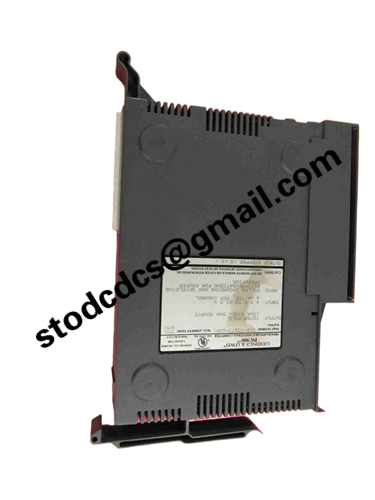

Product details picture:
502-03677-02
