GIDINGS&LEWIS 502-03679-00 Thermocouple Module
Brand:GIDDINGS & LEWIS
Model:502-03679-00
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
GIDINGS&LEWIS 502-03679-00 Thermocouple Module
Product manual:
GIDDINGS&LEWIS 502-03679-00 Thermocouple Module
1、 Product Overview
GIDDINGS&LEWIS 502-03679-00 thermocouple module is a temperature measurement input module used in industrial automation systems.
It converts temperature signals into digital signals recognizable by the controller by connecting different types of thermocouples (such as J, K, T, E, etc.), providing high-precision process temperature monitoring and closed-loop control functions.
This module is widely used in CNC machine tools, process control, manufacturing, and experimental testing equipment.
2、 Technical parameters (typical indicators, specific subject to physical object)
Module type: thermocouple input module
Support sensors: J, K, T, E, N, R, S, B and other types of thermocouples
Number of channels: Multi channel input (commonly 4/8 channels)
Input range: -200 ℃ to+1800 ℃ (depending on thermocouple type)
Resolution: 0.1 ℃ or higher accuracy
Accuracy: ± 0.5% full scale (typical)
Cold end compensation: Built in automatic compensation function to ensure measurement accuracy
Isolation method: Channel and system bus isolation to enhance anti-interference capability
Interface method: Modular slot design, compatible with GIDDINGS&LEWIS 502 series system bus
Sampling speed: typical 100ms-500ms/channel
3、 Application scenarios
Numerical Control Machine Tools and Heat Treatment Equipment
Temperature detection and protection of spindle bearings, cutting tools, heat treatment furnaces, etc.
process industry
Used for temperature monitoring and automatic control in the chemical, metallurgical, and energy industries.
Automatic production line
Perform temperature closed-loop regulation on injection molding, printing, textile and other process links.
Experimental and testing platform
Used for precise temperature measurement in scientific research or quality inspection systems.
Energy and Power Systems
Applied to temperature monitoring of equipment such as boilers and turbine units to ensure safe operation.

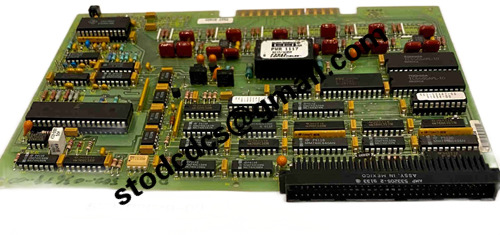

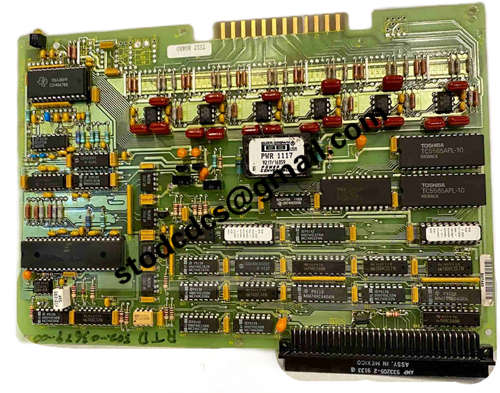

Product details picture:
502-03679-00
