GIDINGS&LEWIS 502-03681-02 output module

Product manual:

Giddings&Lewis 502-03681-02 Output Module
Product Overview

502-03681-02 is an output module in Giddings&Lewis industrial control and numerical control systems. It serves as the interface between the controller and the on-site execution device,
Mainly responsible for converting the logic signals and control instructions issued by the controller into actual driving signals, and controlling the operation of various external devices.

Technical Characteristics

Module type: digital quantity/relay output module

Functional positioning:

Convert control logic into electrical signal output

Drive actuators (motors, relays, contactors, indicating devices, etc.)

Equipped with overload and short circuit protection, suitable for industrial high reliability requirements

Interface design: Adopting a standardized slot structure for easy system integration and expansion

Application field

CNC machine tool

Output control signal to spindle servo motor or auxiliary motor

Drive peripheral equipment such as coolant pump, hydraulic device, lubrication system, etc

Automatic production line

Control the execution units such as conveyor belts, pneumatic actuators, sorting robots, etc

As the logical output interface between the control center and on-site equipment

Robots and Motion Control

Output action instructions to the drive module to achieve synchronous actions of the robotic arm or platform

Manage the start stop and switching during the movement process

Factory Process Control

Drive signal devices such as alarm lights and buzzers

Start/stop process equipment to achieve fully automatic operation

Product advantages

High reliability: meets the industrial needs of long-term operation, with strong anti-interference ability

Quick response: Ensure real-time transmission of control instructions to the executing mechanism

Modular maintenance: can be independently replaced or expanded, making it easy to upgrade and repair the system

Good compatibility: seamlessly integrated with Giddings&Lewis control platform, supporting multiple on-site devices

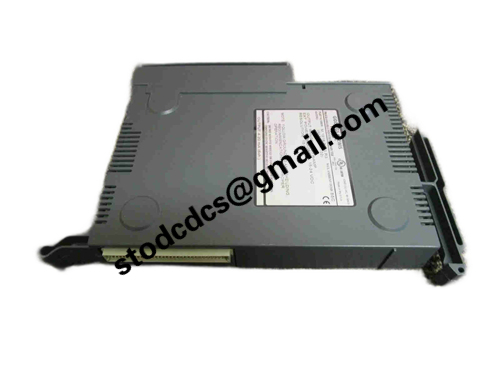

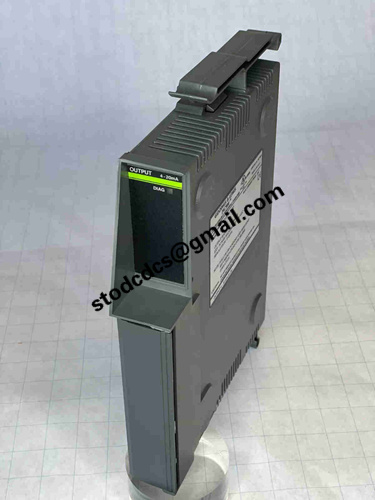

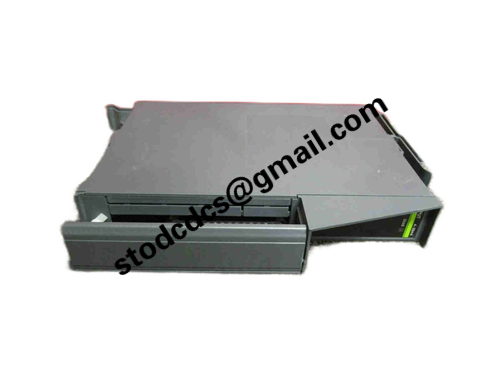

Product details picture:

502-03681-02
