GIDINGS&LEWIS 502-03786-02 Encoder
Brand:GIDDINGS & LEWIS
Model:502-03786-02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
GIDINGS&LEWIS 502-03786-02 Encoder
Product manual:
GIDINGS&LEWIS 502-03786-02 Encoder
Product Overview
502-03786-02 is a high-precision rotary encoder from Giddings&Lewis, used for detecting the position, velocity, and direction of rotating axes in CNC machine tools and automation systems.
This encoder provides closed-loop feedback signals, which work in conjunction with servo drivers and controllers to achieve precise motion control and position adjustment.
Product application areas
Numerical Control Machine Tool (CNC)
Measure the position and speed of the spindle and feed axis to achieve high-precision machining and multi axis synchronous control.
Industrial automation production line
Real time position and speed monitoring of rotating motors or transmission devices to ensure precise operation of automated processes.
robot system
As a position feedback device for joint servo motors, it ensures the repeatability accuracy and path control of actions.
Packaging and Printing Machinery
Monitor the rotation status of the feeding wheel, reel, or tension drum to ensure synchronous operation and processing stability.
Experimental and testing platform
Provide high-precision measurement of rotational motion for dynamic analysis of experimental benches, testing benches, and research and development platforms.
Product Features
High precision feedback: Provides micrometer level position detection and high-speed rotation measurement.
High speed response: capable of real-time output of pulses or analog signals, ensuring closed-loop accuracy of motion control.
Industrial reliability: resistant to vibration, dustproof, anti-interference, suitable for complex workshop environments.
Multiple output types: can output incremental pulses or absolute encoded signals to meet different control requirements.
Modular design: easy to install and compatible with servo systems or control boards.
Strong system compatibility: can seamlessly integrate with G&L series servo drives and control modules.

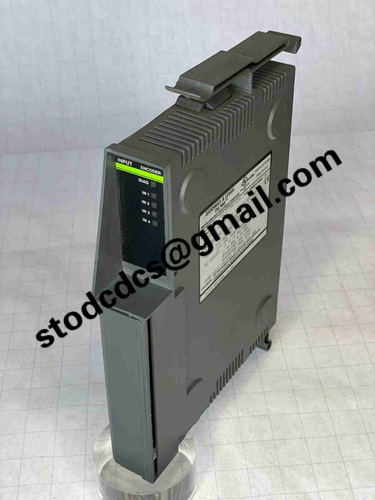

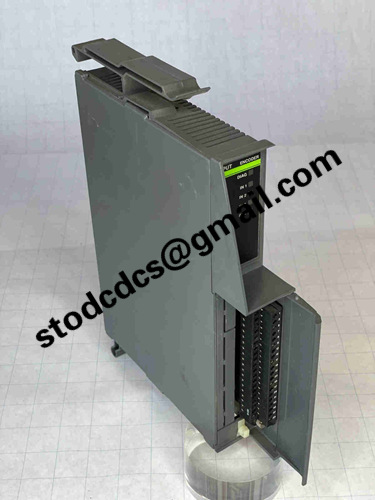

Product details picture:
