GIDINGS&LEWIS 502-03840-00 servo encoder module
Brand:GIDDINGS & LEWIS
Model:502-03840-00
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
GIDINGS&LEWIS 502-03840-00 servo encoder module
Product manual:
Product Overview
GIDINGS&LEWIS 502-03840-00 servo encoder module is a high-precision feedback device mainly used for detecting the rotational position, speed, and direction of motors in servo systems.
This module converts mechanical motion into electrical signals, providing precise feedback information required for closed-loop control of servo drives and controllers, ensuring high precision and responsiveness of actuator actions.
It is suitable for precision motion control scenarios of CNC machine tools and industrial automation equipment.
Technical parameters (typical)
Type: Incremental or Absolute Encoder
Resolution: High resolution pulse output, achieving micrometer level positioning accuracy
Feedback signal: Orthogonal A/B signal and Z-phase reference pulse
Interface: Industrial standard interface, compatible with G&L servo drives and controllers
Power supply: Standard industrial voltage, suitable for various machine tool environments
Environmental resistance: resistant to vibration, impact, high temperature, and industrial dust
Mechanical installation: Standard flange and shaft interface for quick installation and maintenance
Application scenarios
CNC machine tool
Provide precise position feedback for the spindle, feed axis, and tool magazine to achieve high-speed and high-precision machining.
Servo drive system
Used for closed-loop control to ensure real-time adjustment of motor position, speed, and torque.
Automatic production line
Monitor the movement of the executing mechanism to achieve multi station action synchronization and process control.
industrial robot
Provide precise position feedback for robotic arm joints or end tools, supporting multi axis linkage.
Packaging and Printing Machinery
Real time feedback on the position of feeding, cutting, and packaging devices to ensure high-speed and precise movements.
Textile machinery and winding equipment
Provide precise motion information for winding and tension control devices to ensure process stability.

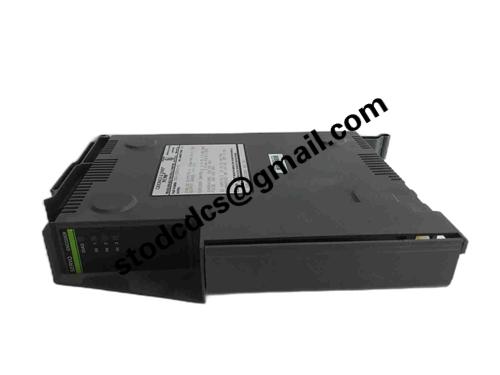

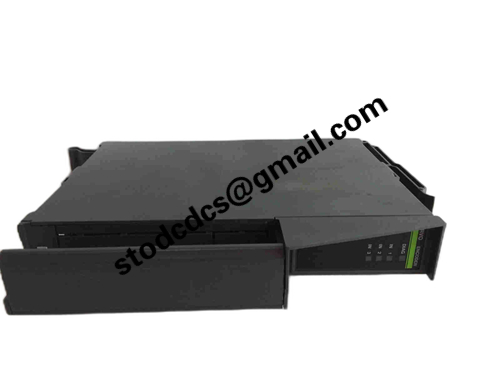

Product details picture:
502-03840-00
