GIDINGS&LEWIS 502-03954-00 Output Relay Module

Product manual:

GIDINGS&LEWIS 502-03954-00 Output Relay Module
Product Overview

GIDINGS&LEWIS 502-03954-00 output relay module is a signal output unit in industrial automation systems,
Mainly used to convert the weak electrical signals emitted by the controller into relay outputs that can drive external devices.
This module has good electrical isolation and anti-interference capabilities, suitable for controlling various industrial loads, ensuring the safety and reliability of system operation.

Technical parameters (typical characteristics, specific subject to actual model)

Output type: Relay contact output

Number of channels: Multi channel output, suitable for batch control of external devices

Contact capacity: can drive loads such as solenoid valves, contactors, alarms, etc

Electrical isolation: Isolation design is provided between channels and controllers to enhance the system's anti-interference capability

Response time: Meet the real-time requirements of industrial control systems

Installation method: rack or plug-in installation, easy to expand and maintain

Product application areas

Numerical Control Machine Tool Control System

Used to control auxiliary equipment such as cooling pumps, lubrication systems, workpiece clamping devices, etc.

Ensure the coordinated operation of various auxiliary links during the machining process of the machine tool.

Automatic production line

Drive conveyor belt motors, pneumatic actuators, alarm devices, etc.

Implement logical control and interlocking protection for production processes.

robot system

Used to control the switch actions of peripheral fixtures and end effectors.

Provide reliable switch signals to achieve auxiliary functions for automated operations.

Process control industry

Used for valve, motor, and alarm signal control in continuous factories such as chemical, metallurgical, and papermaking.

Implement safety interlocking, fault alarm, and remote control.

Logistics and Warehouse Automation

Drive and transport sorting equipment, stacker cranes, and automatic doors and other facilities.

Support the coordinated control of material handling and warehousing systems.

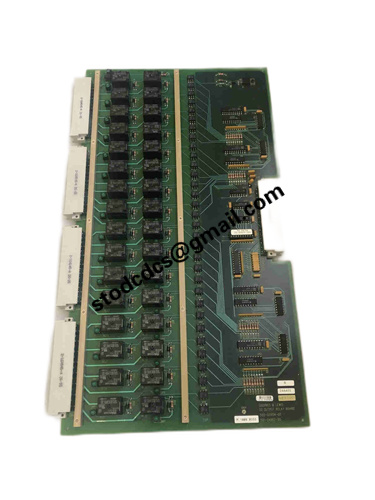

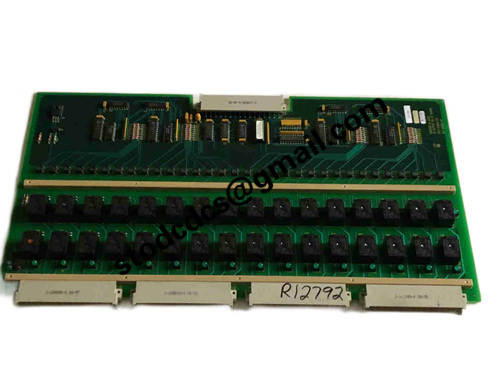

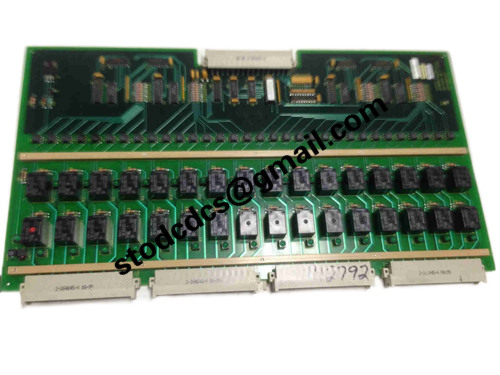

Product details picture:

502-03954-00
