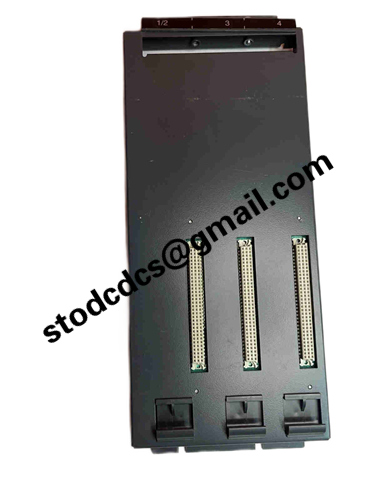

GIDINGS&LEWIS 503-19185-01 Encoding Input Module

Brand:GIDDINGS & LEWIS
Model:503-19185-01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

GIDINGS&LEWIS 503-19185-01 Encoding Input Module

Product manual:

GIDINGS&LEWIS 503-19185-01 Encoding Input Module
Product Overview

Giddings&Lewis 503-19185-01 Encoding Input Module is a feedback signal interface module used for CNC machine tools and automation systems. It is mainly used to receive position or velocity signals from rotary encoders and convert them into standard digital signals that can be recognized by the control system. This module is a key component for achieving closed-loop control, precise positioning, and multi axis linkage.

Technical Features

High precision signal processing: Analyze incremental or absolute encoder signals to ensure the accuracy of position and velocity feedback.

Closed loop control support: Collaborate with servo drives, execution control boards, etc. to achieve high-precision motion control.

Multi channel input: capable of receiving multiple encoder signals simultaneously, suitable for multi axis control requirements.

Modular design: facilitates rack installation, maintenance, and replacement.

Industrial adaptability: anti-interference, vibration resistant, suitable for heavy-duty machine tool environments.

Application field

CNC boring and milling machines
Provide precise position and speed feedback for axes such as spindle, worktable, and tool holder to achieve high-precision machining.

Vertical lathe and milling composite center
Coordinate multi axis motion to achieve multi process machining of complex parts.

Automatic production line
Monitor the position of robotic arms or multi axis execution units to ensure synchronized actions.

Machine tool transformation and upgrading
In the CNC transformation of old equipment, providing encoder interfaces can improve motion accuracy.

Robots and precision mechanical equipment
Support closed-loop position and speed control of high-precision robotic arms or other precision equipment.
