GIDINGS&LEWIS 572-03782-02 servo control board

Product manual:

GIDINGS&LEWIS 572-03782-02 servo control board
Product Overview

GIDINGS&LEWIS 572-03782-02 servo control board is a core control module in industrial automation systems, used for precise control of servo motors.
It controls the speed, position, and torque of the motor by receiving command signals from the main control system, achieving high-precision motion control.
This servo control board is widely used in CNC machine tools, automated production lines, multi axis motion platforms, and robot systems.

Technical parameters (typical characteristics, actual values need to refer to official materials)

Control functions: closed-loop position control, speed control, and torque control

Input signal: Supports digital and analog command input

Output power: capable of driving various specifications of servo motors, supporting continuous operation and short-term overload

Response speed: High speed dynamic response, meeting the requirements of complex motion control

Feedback interface: Supports position/velocity feedback devices such as encoders or rotary transformers

Protection function: equipped with overcurrent, overvoltage, overheating, and short circuit protection

Installation method: Modular board, can be directly inserted into the system rack or control unit

Environmental adaptability: Industrial grade design, resistant to high temperature, vibration, and electromagnetic interference

Application scenarios

Numerical Control Machine Tool (CNC)

Control the spindle, feed axis, and multi axis linkage to achieve high-precision machining and complex tool path operations.

Automatic production line

Drive conveying, assembly, and testing equipment to achieve precise control of the production process.

robot system

Control the servo motors of each joint to achieve precise positioning and trajectory control.

Multi axis motion platform

Realize synchronous motion and coordinated control in industrial handling, cutting, or welding equipment.

Process control industry

Realize precise adjustment and control of servo drive in continuous production systems such as metallurgy, papermaking, and chemical engineering.

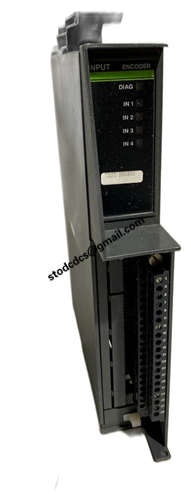

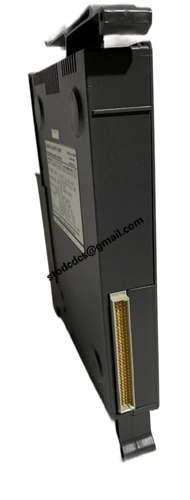

Product details picture:

572-03782-02
