GIDINGS&LEWIS M.1017.3436 Execution Control Module

Product manual:

1、 Product Overview

GIDINGS&LEWIS M.1017.3436 Execution Control Module is a key control unit used in industrial automation systems and CNC machine tools.
It is mainly responsible for receiving instructions from the upper control system (such as PLC or CNC) and driving actuators through control output signals
Servo motors or other mechanical components are used to achieve precise motion control and equipment operation.
This module is widely used in high-precision machining and automated production scenarios.

2、 Technical parameters (typical characteristics)

Model: M.1017.3436

Functional positioning: Execution control module

Control mode: digital output control, supporting multiple actuator drive modes

Input interface: capable of receiving control signals (pulses, logic signals, etc.) from the upper system

Output interface: Drive servo motor, stepper motor or mechanical actuator

Response speed: High dynamic response, meeting the requirements of high-speed motion control

Protection function: overcurrent, short circuit, and over temperature protection

Installation method: Modular slot design for easy cabinet installation and maintenance

3、 Application scenarios

Numerical Control Machine Tool (CNC)

Drive cutting tools, spindles, and workpiece fixtures to achieve precision machining

Automatic production line

Control the actions of robotic arms, conveyors, and sorting equipment

Packaging and Printing Machinery

Realize high-speed and synchronous actuator control to ensure production accuracy

textile machinery

Multi axis coordinated motion improves process accuracy and efficiency

Laboratory and testing equipment

Accurate driving of experimental or testing equipment to achieve repeatability and reliability

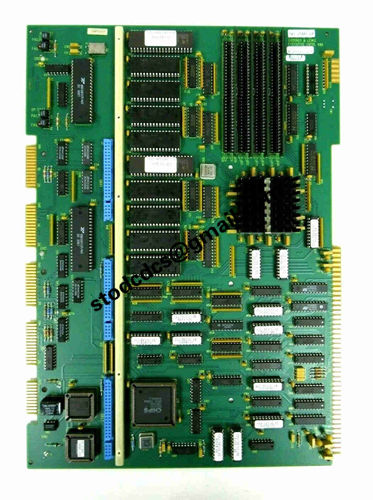

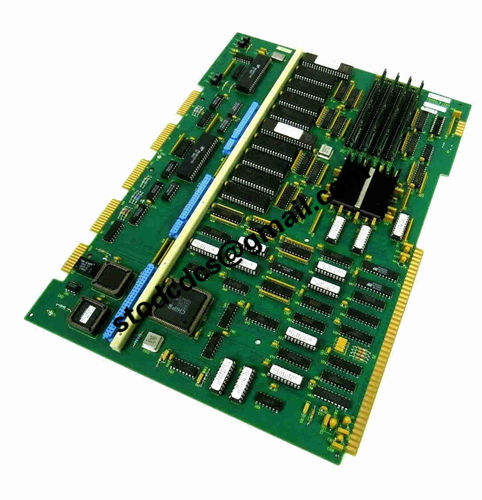

Product details picture:

M.1017.3436
