Huttinger C40-0864-01 D40-864-0 RF Unit Board

Product manual:

Huttinger C40-0864-01/D40-0864-0 RF Unit Board
Product Overview

Huttinger C40-0864-01/D40-0864-0 is an industrial grade RF Unit Board used for RF signal conditioning and power control in RF generators, power amplifiers, or plasma systems. This RF unit board can accurately control the RF output power and waveform, ensuring the stability and consistency of laser or plasma processes, and is a core module in high-precision industrial and scientific research applications.

Model: C40-0864-01/D40-0864-0

Type: RF Unit Board

Function: RF power control, signal conditioning, load matching

Application areas: semiconductor manufacturing, laser processing, thin film deposition, and scientific research experiments

Product Features

High precision RF output

It can precisely adjust the RF power, voltage, and current output by the generator or power amplifier to ensure process stability.

Load matching optimization

Collaborate with matching networks to achieve optimal impedance matching between RF systems and loads, reduce reflected power, and improve energy transmission efficiency.

Industrial grade reliability

Supports long-term continuous operation, strong anti-interference ability, suitable for complex industrial environments.

protection function

Built in overcurrent, overvoltage, and short-circuit protection to ensure equipment and process safety.

modular design

Easy to install, maintain, and replace, compatible with HUTTINGER series RF modules.

Flexible control

Supports local panel operation and remote interface control, making it easy to integrate automated process systems.

Application field

Semiconductor Manufacturing

RF power control for processes such as plasma etching, ion implantation, and thin film deposition.

Laser processing

RF power regulation in laser cutting, welding, marking, and precision machining.

Thin film deposition and surface treatment

High precision processes such as PVD/CVD technology, optical coating, and industrial coating.

Scientific research experiment

The core control module for materials science, plasma physics, and high-precision RF experiments.

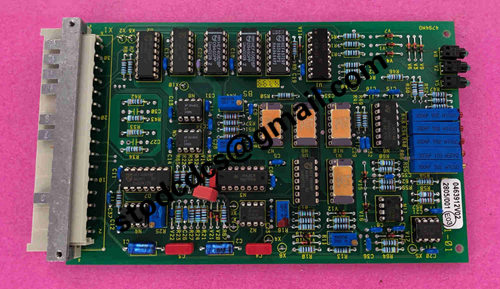

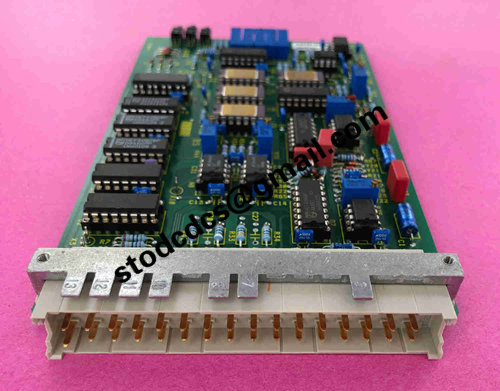

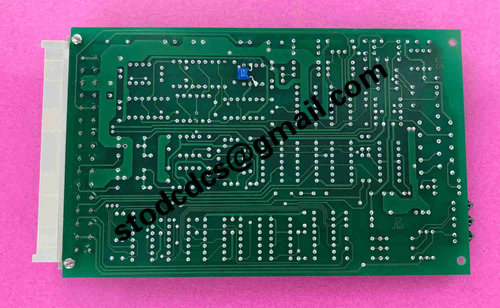

Product details picture:

C40-0864-01 D40-864-0
