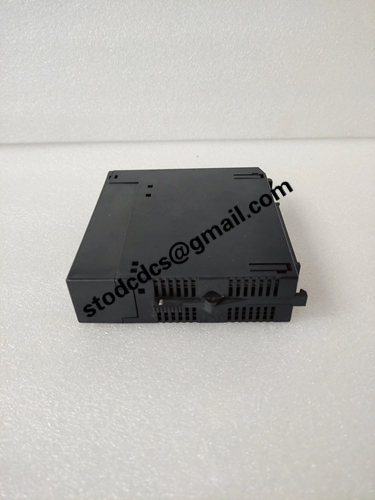

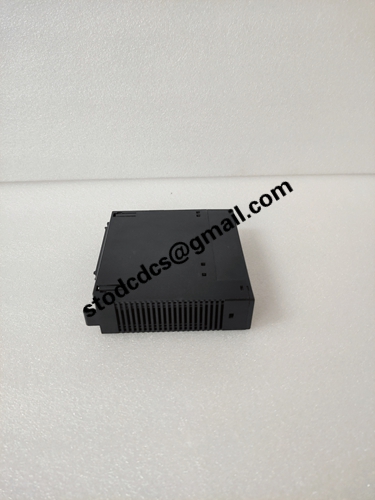

IC693CPU350-BC Memory Controller Module

Model: IC693CPU350-BC
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

IC693CPU350-BC Memory Controller Module

Product manual:

IC693CPU350-BC Memory Controller Module (CPU) Product Features

IC693CPU350-BC is the CPU controller module of GE Fanuc (now Emerson) Series 90-30 PLC, integrating processor and memory management functions, responsible for program execution, data processing, and I/O control, and is the core unit of system operation.

core functionality
Logical control and operation: Execute user programs to achieve sequential control, logical judgment, and data processing.
Memory management: Built in program storage and data storage area, supporting power-off hold.
I/O data exchange: Manage on-site input and output signals to achieve device control.
Communication capability: Supports data communication with upper computer, touch screen, and other PLCs (through interfaces or expansion modules).
Main Features
32-bit processor: Based on the 80386 architecture, it runs stably and is suitable for small and medium-sized control systems.
Fixed user memory: Approximately 32KB program capacity, meeting conventional control requirements.
Fast scanning speed: about 0.22 ms/1K instruction, with good real-time performance.
Strong scalability: Supports expanding multiple I/O modules and communication modules.
Modular design: single slot structure, easy to install, and convenient for maintenance and replacement.
Industrial grade reliability: with anti-interference capability, supporting battery backup and data retention.
Status indication function: with operation/fault indication, convenient for on-site diagnosis.
Technical parameters (typical)
Processor: 80386 series
Main frequency: about 25 MHz
User Memory: Approximately 32 KB
Scanning speed: 0.22 ms/1K instruction
Power requirement: 5 V DC (powered by substrate)
Working temperature: 0 ℃~60 ℃
I/O capacity: expandable to larger scale systems
Application field
Factory automation production line
Mechanical equipment control system
Water Treatment and Energy Systems
Packaging, logistics, and manufacturing industries
