IC693DNM200-BD Industrial Controller Module

Model: IC693DNM200-BD
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

IC693DNM200-BD Industrial Controller Module

Product manual:

IC693DNM200-BD Industrial Controller Module Product Features

IC693DNM200-BD is a DeviceNet master communication module in GE Fanuc (now Emerson) Series 90-30 series, used for data communication and network management between PLCs and field devices. It is an important interface unit for building distributed control systems.

core functionality
DeviceNet master control: As the master module, responsible for communication scheduling and management of the entire network.
Remote device connection: Up to 63 slave devices can be connected to achieve distributed I/O control.
Data exchange processing: Supports I/O data communication and explicit message transmission to achieve real-time data interaction.
Multiple communication methods: Supports polling, cyclic, and state change (COS) communication modes.
Main Features
Multi rate communication: supports 125K, 250K, and 500K bps, suitable for different network sizes.
Big data processing capability: A single node can support up to 255 bytes of I/O data exchange.
Strong network scalability: supports multi node connections, suitable for medium to large systems.
Single slot structure design: occupying one PLC slot, easy to install.
Complete diagnostic function: equipped with communication status monitoring and fault diagnosis capabilities.
High reliability design: suitable for industrial environments, with strong anti-interference ability.
Technical parameters (typical)
Working voltage: 12-24 V DC
Communication protocol: DeviceNet
Communication speed: 125/250/500 kbps
Maximum number of slave stations: 63
Data capacity: Maximum 255 bytes per node
Backplane current: approximately 450 mA (5 V DC)
Working temperature: 0 ℃~60 ℃
Application field
Distributed I/O Control System
Factory Automation and Production Line
Equipment networking and fieldbus communication
Mechanical Manufacturing and Process Control

This module mainly serves as the "communication master station" in the 90-30 PLC system, achieving unified management and efficient data exchange of various devices in the DeviceNet network, and enhancing the flexibility and integration capabilities of the system.

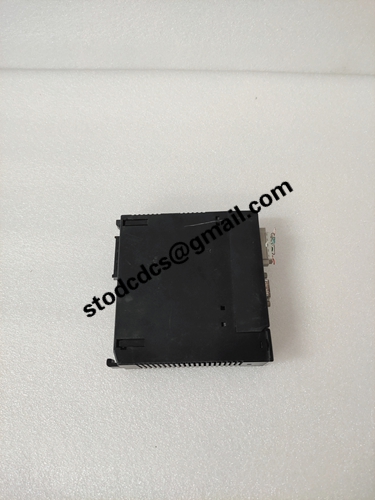

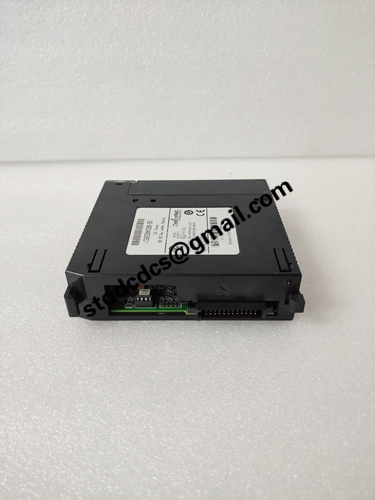

IC693DNM200-BD Product details picture:
