IC693MDL753K output module

Product manual:

Product model: IC693MDL753K

Module type: Discrete output module (digital output)

Applicable system: GE Fanuc Series 90-30 PLC

technical specifications
Output points: 32 points

Output type: 12/24V DC positive logic (source type)

Point group structure: divided into 4 isolation groups, each with 8 points

Output voltage range: 10.2-28.8V DC

Maximum current per point: 0.5A

Maximum current of shared terminal: 3A

Leakage current: typically 0.1 mA

Surge current: maximum 10A, duration<10 ms

Response time: Typically less than 0.5 milliseconds

Isolation voltage: 1500V between the field side and logic side, 250V between groups

Installment and use
Installation position: Suitable for any I/O slot of the 90-30 series rack

Wiring method: Adopting detachable terminal blocks for easy maintenance

Status indication: Each output point is equipped with LED indicator lights to display the output status

Internal protection: equipped with surge protection function to prevent damage caused by instantaneous current surge

Application scenarios
Industrial automation production line

Switching output control, such as solenoid valves, relays, indicator lights

Combine with other modules to build small and medium-sized control systems

Suitable for multiple industries such as metallurgy, power, machinery, packaging, etc

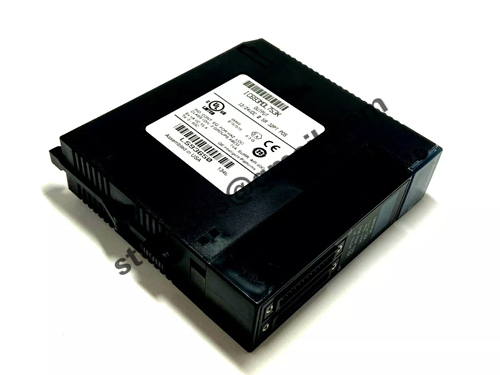

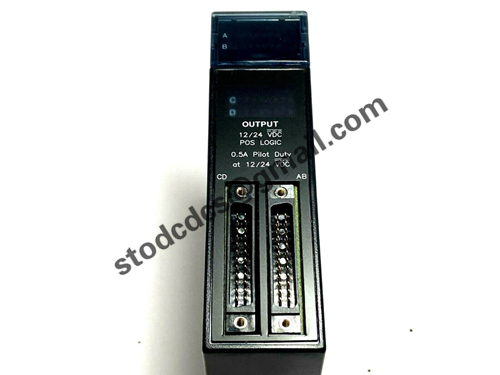

Product details picture:
