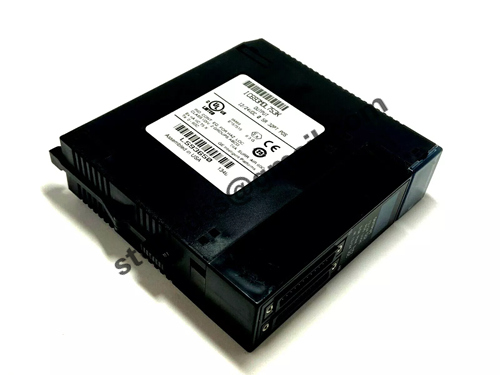

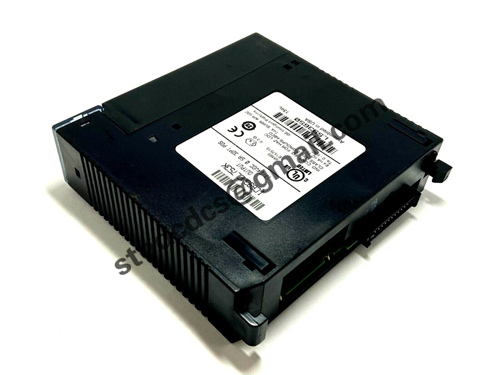

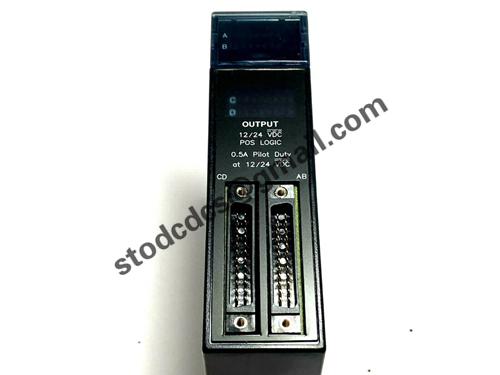

IC693MDL753K output module

Brand:GE
Model: IC693MDL753K
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

IC693MDL753K output module

Product manual:

Model: IC693MDL753K

Brand: GE Fanuc

Series: Series 90-30 PLC

Module type: Digital output module (DC output)

Number of channels: 32 points

Output type: DC source output (sourcing type)

Technical Parameter

Output voltage range: 5VDC to 30VDC (nominal 24VDC)

Output type: Sourcing (PNP) - the module provides current to the load

Maximum output current: 0.5A per point, maximum 4A for the entire module

Surge current capability: Supports 1A per point (continuous for 10ms)

Response time: typically<0.5ms for activation and disconnection

Output protection: Short circuit protection, overload protection, over temperature protection

Channel grouping: 4 groups, 8 points per group, separate common end (COM)

Status indication: Each point is equipped with LED indicator lights

Electrical isolation: Each group of 8 points is isolated from each other (1500V)

Wiring instructions (textual description)
The module provides a positive voltage (+V) to the load, with the other end of the load connected to the common terminal (COM).

Recommend using an external 24VDC power supply connected to the V+input of the module.

Precautions for use
Source Output Module (PNP): The module provides power to the load and is not suitable for devices that require NPN (Sink) input.

Note that the current limit at each point is 0.5A to avoid overcurrent burnout.

The overall maximum output current is 4A, and the load is distributed reasonably.

Typical application scenarios
Control DC load devices such as indicator lights, solenoid valves, small relays, buzzers, etc

Action command output in automated production line

Cooperate with input modules to implement control logic
